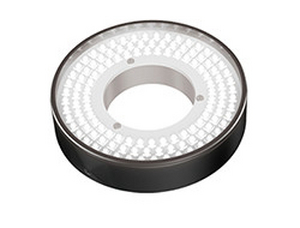

CCS希希爱视 LDR-PF-75SW 超亮频闪光源
LED发光颜色 | White |
---|---|
相关色温 | 7,500 K typ. |

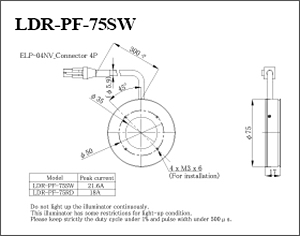

外观尺寸 | Outer dia.: Φ75 mm, Inner dia.: Φ35 mm, Height: 17 mm |
峰值电流 | 21.6 A |
输入电压 | 48 VDC max. |
极性, 信号 | 1: (+), 2: (+), 3: (-), 4: (-) |
线缆长度 | 300 mm |
外壳材质 | Aluminum alloy |
输入端口 | ELP-04NV |
适合规格 | CE, UKCA, RoHS, IEC 62471(Low risk) |
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
冷却方式 | Natural air-cooling |
重量 | 150 g |
附属品 | High Power Strobe Light Units Handling Precautions |
备注 | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle |
