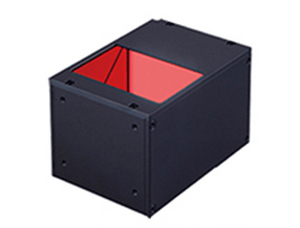

CCS希希爱视 LFV-PF-70RD 超亮频闪光源
LED发光颜色 | Red |
---|---|
峰值发光波长 | 627 nm typ. |

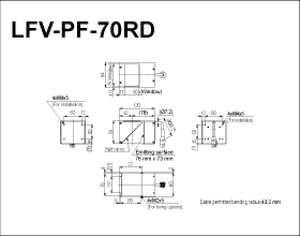

外观尺寸 | W 84 mm x D 120 mm x H 78 mm |
峰值电流 | 37.8A |
输入电压 | 48 VDC max. |
极性, 信号 | 1: (+), 2: (+), 3: (-), 4: (-), 5: (+), 6: (+), 7: (-), 8: (-), 9: NC |
线缆长度 | 300 mm |
外壳材质 | Aluminum alloy, Glass |
输入端口 | ELP-09V |
适合规格 | CE, UKCA, RoHS, IEC 62471(Exempt) |
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
冷却方式 | Natural air-cooling |
重量 | 800 g max. |
附属品 | User Manual, 2-branch cable (Model: FCB-0.3-PF-W-EL4-EL9) |
备注 | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle |
