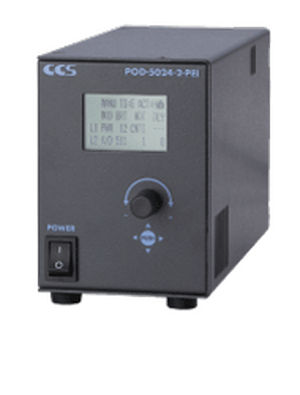

CCS希希爱视 POD-5024-2-PEI 驱动超频式频闪电源

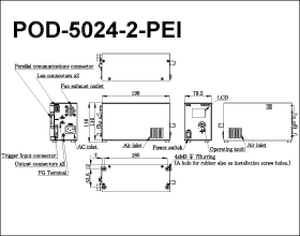

| 外观尺寸 | W 79.2 mm x D 199 mm x H 116 mm |
|---|---|
| 通道数 | 2 channels |
| 发光方式 | Strobe lighting (Overdrive (O/D) mode) or Continuous lighting (PWM mode) |
| 驱动方式 | Constant lighting |
| 调光方式 | Variable-voltage control / PWM control |
| PWN频率 | 125kHz |
| 输入电压 | 100 to 240 VAC (+10%, -15%) |
| 频率 | 50/60 Hz |
| 消耗功率 | 65 VA typ. |
| 输出电压 | O/D Mode: 24 to 48 VDC PWM Mode: 24 VDC |
| 涌入电流(typ) | 15 A (at 100 VAC), 36 A (at 240 VAC) from a cold start |
| 调光 | Manual: Operation on the front panel External: Command input via TCP/IP or UDP/IP communications, Signal input through parallel port |
| 输出端口 | SMP-03V-BC x 2 |
| 外部控制端口 | Trigger input: MIL connector (MIL-C-83503 compliant],10-pins, Light Intensity and mode settings:RJ-45 |
| 适合规格 | CE, UKCA, RoHS |
| 使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| 保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| 冷却方式 | Forced air cooling |
| 重量 | 1,500 g max. |
| 材质 | Steel sheet, Cover thickness: 1.6 mm Chassis thickness: 1.0 mm, N3 (leather tone) |
| 附属品 | Instruction Guide, 2-m-long 3-prong AC power cord with ground terminal |
| 注意事项 | Make sure that the total input current of the connected Light Units is no more than the output current of the Control Unit. |
| Program | 【Sample Program】 Sample programs are available. See the 选件 tab. |
