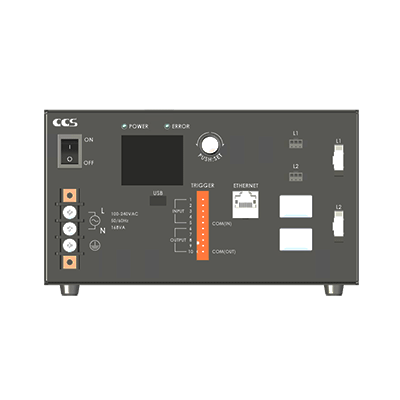

CCS希希爱视 PD4-12024-2-E-NC 数字电源
| 外观尺寸 | W 190 mm x D 95 mm x H 106 mm |
|---|---|
| 适合光源(输出定额) | 24V DC Light Units, total for all connectors: 120 W max. (ELR-02V: 120 W max. per connector, SMP-03V-BC: 60 W max. per connector) |
| 通道数 | 2 channels |
| 发光方式 | Strobe lighting, continuous lighting (no overdrive) |
| 驱动方式 | Constant lighting |
| 调光方式 | PWM control |
| PWN频率 | 125 kHz |
| 输入电压 | 100 to 240 VAC (+10% -10%) |
| 频率 | 50/60 Hz |
| 消耗功率 | 168 VA |
| 输出电压 | 24VDC |
| 输出电流 | SM connector: 60 W / channel EL connector: 120 W / channel Channel Total: 120 W |
| 涌入电流(typ) | 14 A (at 100 VAC), 34 A (at 240 VAC) from a cold start *When selecting a circuit breaker, refer to this value and select the product that has the trip characteristics suitable for use with switched mode power supplies. For information on the applicable trip characteristics, refer to the switched mode power supply manufacturer websites, etc. |
| 外部控制协议 | Ethernet comm., PLCCOM comm. |
| 错误检测显示 | Panel surface Error lamp (red) and LCD screen display |
| 错误检测输出 | (1) Reflection to error status (Ethernet/USB) (2) UDP/IP packet transmission (single-shot/continuous transmission selectable) (Ethernet) |
| 过电流保护 | Operates at 109% or more of the output current (per channel) Recovery by power-on, panel setting knob, or error cancellation command via Ethernet/USB communication |
| 过电压保护 | Category II |
| 输出端口 | ELR-02V x 2, SMP-03V-BC x 2 SM/EL connectors on the same channel have the same intensity setting |
| 外部控制端口 | [Trigger input/output] Terminal block connector SL 3.50/10/180F 3.2SN OR BX (Weidmuller) 10 poles 1 to 4: input, 5: input common, 6 to 9: output, 10: output common [Ethernet] RJ-45 [USB] Mini-B |
| 触发 | Logic switching (High-Low switching), pin assignment change, filter time setting, emission delay time setting |
| 适合规格 | [Compatible standards] CE, UKCA, KC [Environmental regulations] RoHS,TSCA PBT,REACH |
| 使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| 保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| 冷却方式 | Natural air-cooling |
| 重量 | 1.5 kg max. |
| 材质,涂装,表面处理 | Steel sheet, cover thickness: 1.6 mm, chassis thickness: 1.0 mm, black (leather satin) |
| 附属品 |
|
| 备注 | Equipped with ON/OFF physical switch Supports keep-alive function This model doesn't include an AC power cable. When using an AC power cable not provided by CCS Use vinyl cabtire (VCT) cable (conductor cross-sectional area: ≥ AWG 18 (≥ 0.75 mm2), withstand voltage: ≥ 600 V) for the AC power cable. For protective earth, use a cable with a conductor cross-sectional area greater than or equal to all other wires. For more details regarding AC power cables, please contact your local sales office. |
| Program | 【Sample Program】 Sample programs are available. See the 选件 tab. |
