    首页 > CCS希希爱视 > CCS希希爱视 LB-1100X100BL 条形光源

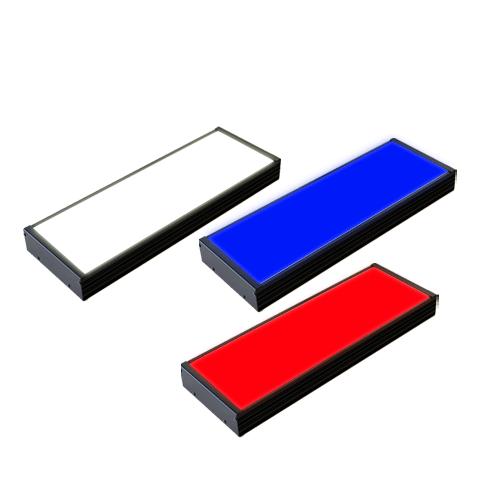

    CCS希希爱视   LB-1100X100BL   条形光源
    • CCS希希爱视   LB-1100X100BL   条形光源

    CCS希希爱视 LB-1100X100BL 条形光源

    CCS希希爱视 LB-1100X100BL 条形光源
    马上咨询
    客服电话
    13246646513 13682357549

    0755-83317701 0755-84670052

    CCS希希爱视   LB-1100X100BL   条形光源

    LED发光颜色LB-1100X100RD: Red
    LB-1100X100SW: White
    LB-1100X100BL: Blue
    相关色温LB-1100X100SW: 6300 K typ.
    峰值发光波长LB-1100X100RD: 630 nm typ.
    LB-1100X100BL: 467 nm typ.

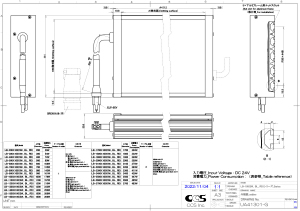

    外观尺寸W 1121.2 mm x D 111 mm x H 33.6 mm
    输入电压24 VDC
    消耗功率197 W
    极性, 信号1, 2, 3: (+)/4, 5, 6: (-)/7: NC
    线缆长度300 mm
    外壳材质Aluminum alloy, Steel sheet
    输入端口SRCN1A16-7P
    适合规格CE, UKCA, RoHS
    IEC 624711
    LB-1100X100RD : Exempt
    LB-1100X100SW : Exempt
    LB-1100X100BL : Exempt
    使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 85%RH (with no condensation)
    保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (with no condensation)
    冷却方式Natural air-cooling
    重量2.93 kg
    附属品使用说明书
    备注LB-1100X100BL ismade to order. Please contact your sales representative for details.
