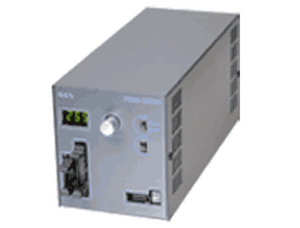

CCS希希爱视 PSB3-30024 模拟电源

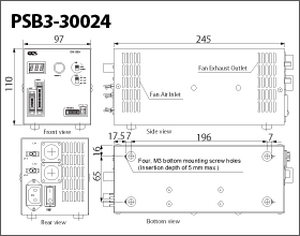

| 外观尺寸 | W 97 mm x D 245 mm x H 110 mm |
|---|---|
| 适合光源(输出定额) | 24 V/300 W |
| 通道数 | 1 channel |
| 发光方式 | 常时发光 |
| 驱动方式 | Constant-voltage system |
| 调光方式 | 可变电压控制 |
| 输入电压 | 100 to 240 VAC (±10% - 15%) |
| 频率 | 50/60 Hz |
| 消耗功率 | 410 VA typ. |
| 涌入电流(typ) | 40 A * From a cold start |
| 调光 | Manual: Set any of 256 steps with the setting switch. Press and hold the switch for 2 seconds to lock the light intensity value. External Parallel communication: 8-bit intensity value setting (B0 to B7) and write signal (WR) Serial communication: Command input via EIA-485 communication Analog input: Analog voltage (0 V to +5 V) |
| 错误检测显示 | Err is displayed on the digital display. |
| 错误检测输出 | Transistor output through external control connector. Normal operation: Open, Overcurrent output detected: Closed |
| 过电流保护 | Operates at 105% of the rated current. Resets by cycling the Control Unit. |
| 过电压保护 | Operates at 120 to 155% of the rated voltage. Resets by cycling the Control Unit. |
| 输出端口 | SRCN2A16-7S (1 to 3: output (+), 4 to 6: output (-), 7: NC) x 2 and ELR-02V x 2 |
| 外部控制端口 | Parallel communications connector (20-pin MIL-C-83503 compliant), ON/OFF input connector (10-pin MIL-C-83503 compliant), and EIA-485 communications/analog input connector (e-CON compliant) |
| 适合规格 | CE, UKCA, RoHS |
| 使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| 保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| 冷却方式 | Forced air cooling |
| 重量 | 2,300 g |
| 材质 | Steel sheet, Cover thickness: 1.0 mm, Chassis thickness: 1.6 mm, N3 (leather tone) |
| 附属品 | Instruction Guide, 2m long 3-prong AC power cord with ground terminal, Two locking Keys |
| Program | 【Sample Program】 Sample programs are available. See the 选件 tab. |
