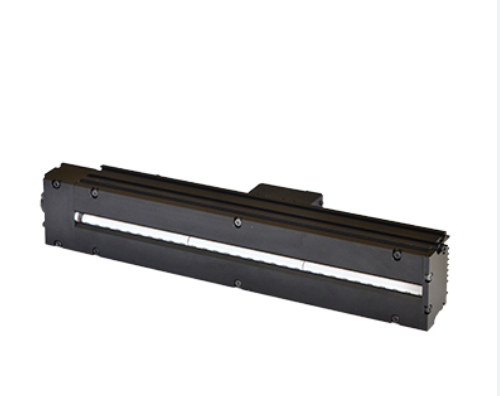

CCS希希爱视 LNSP-100UV3-365-FN 紫外 / 紫光源
| LED发光颜色 | Ultraviolet |
|---|---|
| 峰值发光波长 | 365 nm typ. |

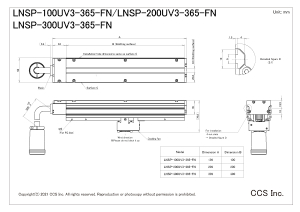

| 外观尺寸 | W 139 x D 62 x H 79.8 mm |
| 消耗功率 | 36 W max. (Including power consumption for fans) |
| 线缆长度 | 300 mm |
| 外壳材质 | Aluminum alloy, Steel sheet |
| 输入端口 | Metal connector PRC04-12A26S-37M18 (Tajimi Electronics co.,ltd) |
| 适合规格 | CE, UKCA, RoHS, REACH, IEC 62471（High risk） |
| 使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| 保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| 冷却方式 | 强制冷却 |
| 重量 | 900 g max. |
| 附属品 | User Manual, Radiation aperture seal, UV DANGER Seal, Nuts for frame x 4, FG line (2 m), M3 mounting screw |
| 注意事项 | * Do not expose your eyes or skin to direct UV irradiation. * When using UV illumination, be sure to wear UV blocking eye wear and avoid looking at irradiating parts (emitting parts). * Do not turn on UV-LED irradiating parts (emitting parts) if they are facing someone's eyes. * Wear long sleeves and gloves to protect your skin from UV irradiation. * Thoroughly educate all those involved near the product about the dangers of UV LEDs. |
