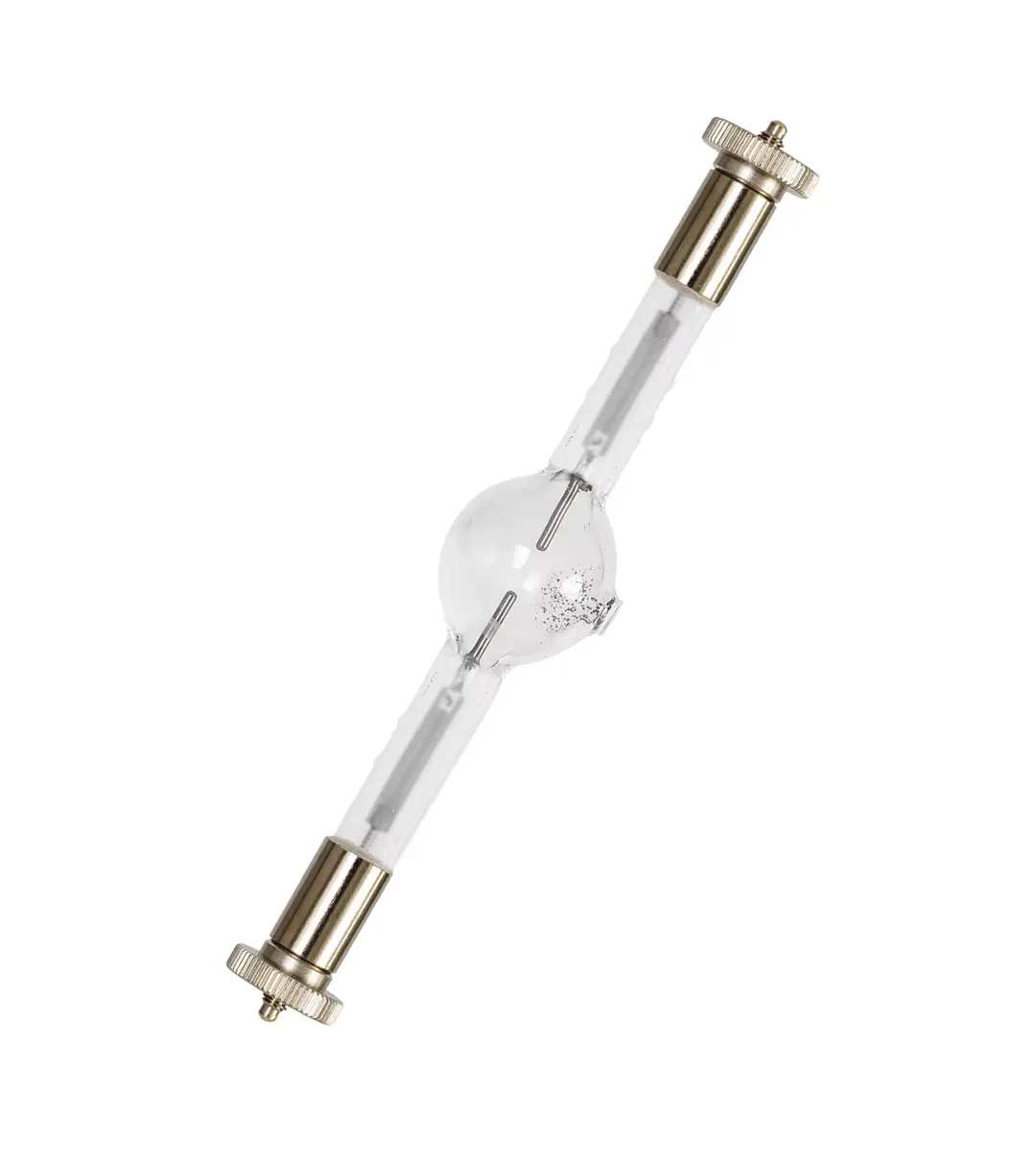

OSRAM 欧司朗 SHARXS HTI 1500 W/D7/60 娱乐照明
- High thermal load capacity thanks to eXtreme Seal (XS) technology - enables high pinch temperatures of up to 450 °C
- 热启动功能
- Concert and effect lighting
安全建议
Because of their high luminance, UV radiation and high internal pressure during operation, SharXS lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
技术数据
电参数
标称功率
1500.00 W
标称电压
110 V
启动电压
5.0 / 35 kVp
标称电流
136 安培
灯泡电流
13.6 安培
光度数据
标称光通量
145000 lm
亮度
42000 cd/cm²
色温
6000 K
显色指数 Ra
>80
尺寸和重量
直径
24.5 mm
长度
136.0 mm
光中心 (LCL)
57.5 mm
温度
反射罩窄口最大允许温度
450 °C
寿命
寿命
750 h
更多的产品数据
灯头 (标准名称)
SFc10-4
产品说明
可运行在1200…1500 W之间
功能
燃点位置
任意
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)Date of Declaration
05-03-2024
Primary Article Identifier
4008321285294 | 4008321349569
Candidate List Substance 1
No declarable substances contained
Declaration No. in SCIP database
In work
包装信息
EAN | 单位 | 件 | 尺寸 | 重量 | 音量 |
|---|---|---|---|---|---|
| 4008321285294 | VS | 1 | 182mm x 87mm x 58mm | 99.00g | 0.92dm³ |
具体国家信息
EAN | METEL编码 |
|---|---|
| 4008321285294 | OSRHTI1500D760 |
| 4008321285300 | OSRHTI1500D760 |
