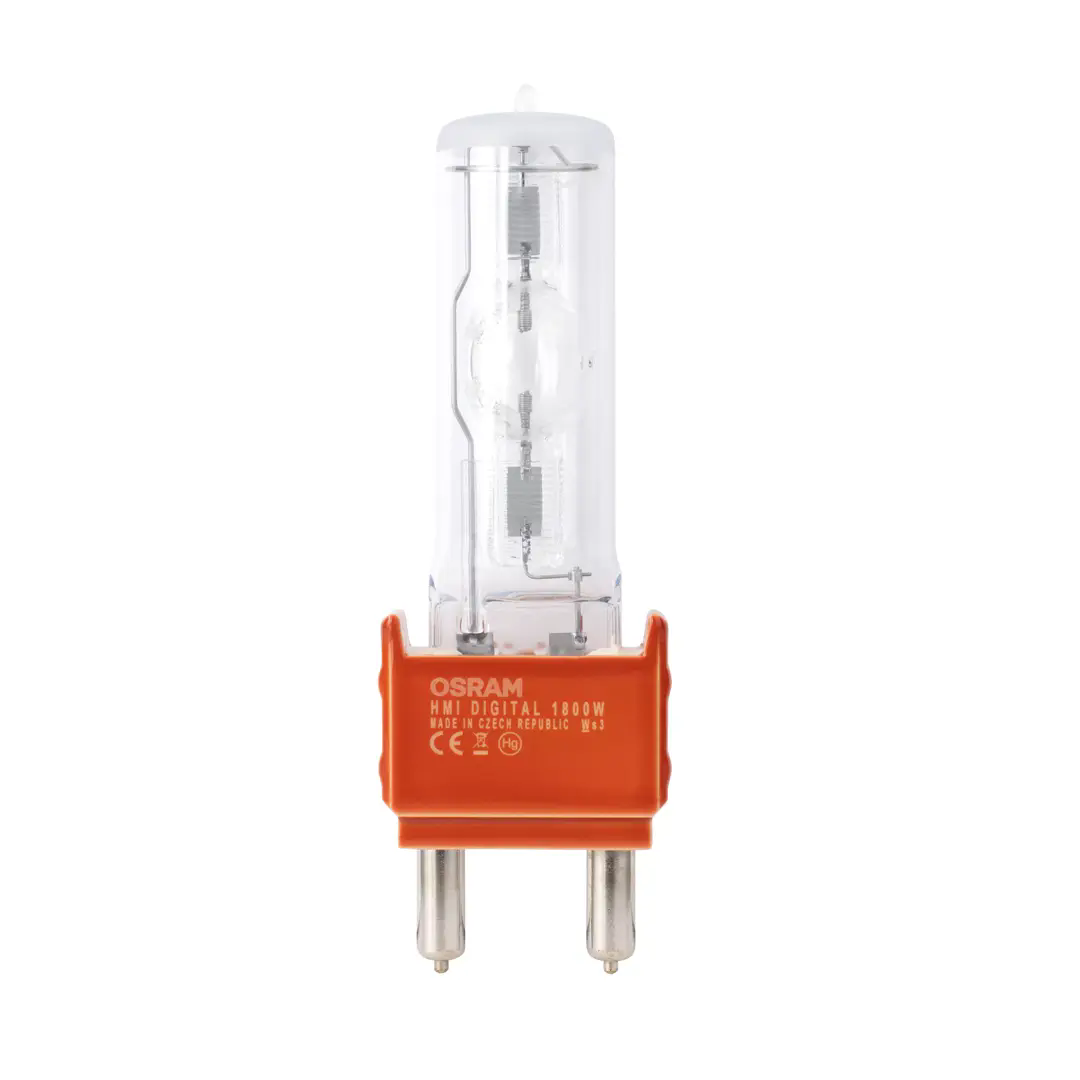

OSRAM 欧司朗 HMI DIGITAL 1800 W 单端金卤灯
- High CRI of >90
- UV-Stop (UVS)
- Color temperature of 6,000 K (daylight)
- Extremely bright light of up to 100 lumens/watt
- 热启动功能
- Suited for both analog and digital film production
- Robust stems, resulting in less breakage during transport
- Round moly-foil construction that evenly distributes heat and current extends for lamp longevity (6,000-18,000 W)
- Splash-proof carrying case is re-usable and allows lamps to be transported safely (6,000-18,000 W)
- Studio
- Stage
- TV
安全建议
Because of their high luminance, UV radiation and high internal pressure during operation, HMI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
技术数据
电参数
标称功率
1800.00 W
标称电压
140 V
标称电流
129 安培
冷/热启动电压
5/35 kVp
光度数据
标称光通量
165000 lm
色温
6500 K
显色指数 Ra
90
尺寸和重量
直径
40.0 mm
长度
200.0 mm
光中心 (LCL)
107.0 mm
冷电极间隙
10.0 mm
温度
灯头允许最高温度
450 °C
寿命
寿命
750 h
更多的产品数据
灯头 (标准名称)
G38
功能
散热
Convection or forced
燃点位置
任意
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)Date of Declaration
06-03-2024
Primary Article Identifier
4052899984202
Candidate List Substance 1
No declarable substances contained
Declaration No. in SCIP database
No declarable substances contained
包装信息
EAN | 单位 | 件 | 尺寸 | 重量 | 音量 |
|---|---|---|---|---|---|
| 4052899984202 | VS | 1 | 340mm x 160mm x 165mm | 520.00g | 8.98dm³ |
