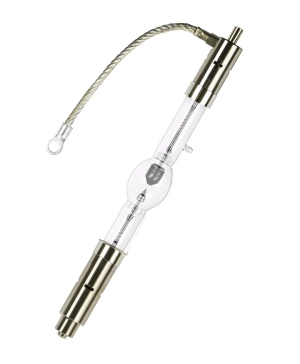

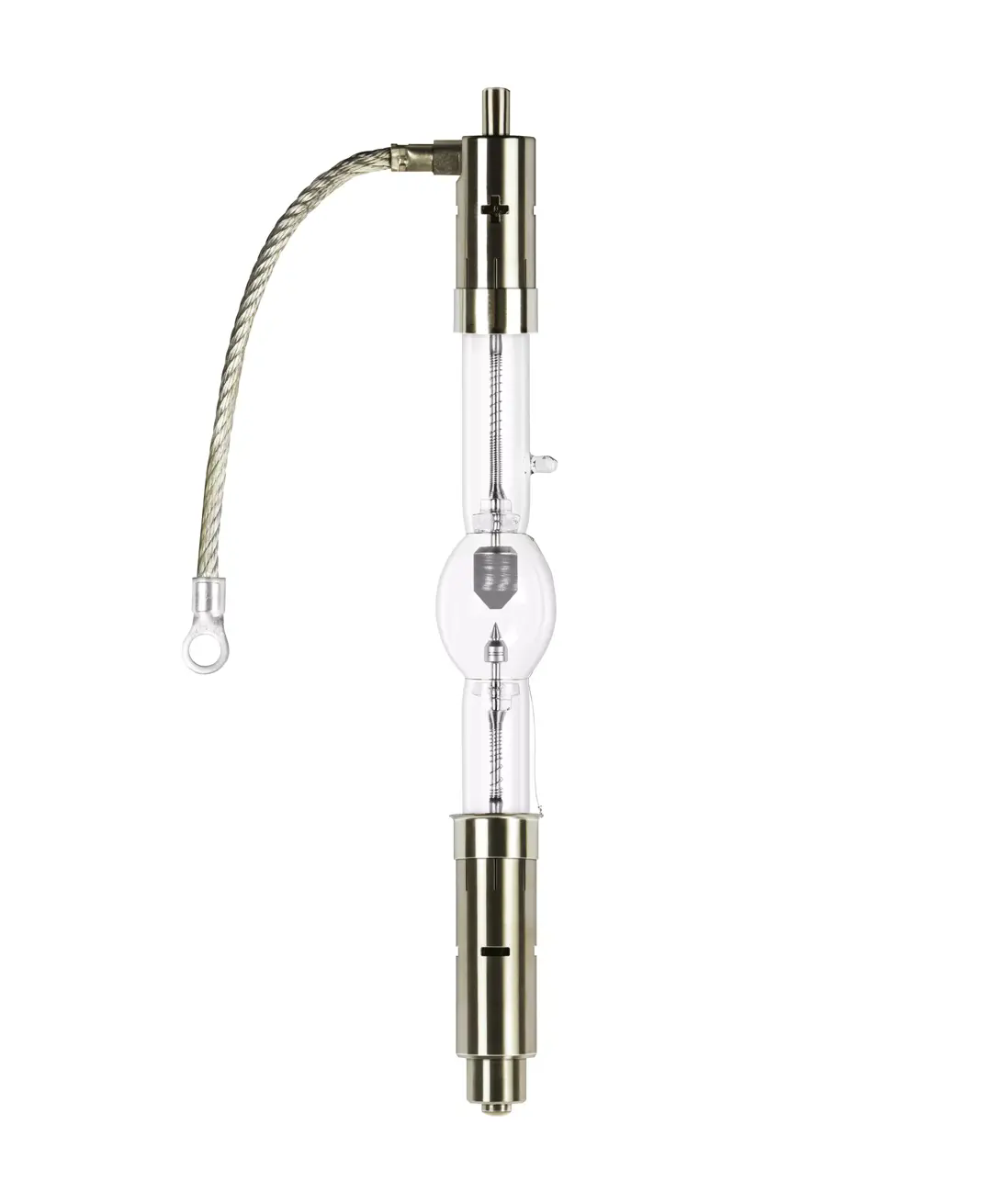

    OSRAM   欧司朗   XBO 1200 W/HPN OFR   氙气短弧灯
    • OSRAM   欧司朗   XBO 1200 W/HPN OFR   氙气短弧灯

    OSRAM 欧司朗 XBO 1200 W/HPN OFR 氙气短弧灯

    OSRAM 欧司朗 XBO 1200 W/HPN OFR 氙气短弧灯
    马上咨询
    客服电话
    13246646513 13682357549

    0755-83317701 0755-84670052

    OSRAM   欧司朗   XBO 1200 W/HPN OFR   氙气短弧灯

    产品特点
    • Short arc with highest luminance for brighter screen illumination
    • A lifetime of reliable performances with constant 6000 K color temperature
    • Easy to maintain
    • High level of arc stability
    • Hot restart and instant light on screen
    • Dimmable in a wide range
    应用领域
    • Cinema projection

    安全建议

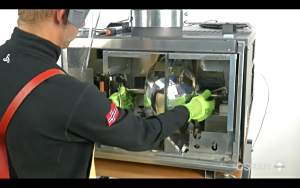

    Because of their high luminance, UV radiation and internal pressure in both the hot and cold state, XBO lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Xenon lamps are highly explosive. When hot, xenon lamps can cause burn marks. They should only be handled when the lamp is at room temperature. Always use the protective jackets supplied when handling these lamps. When packing the lamps and when installing or removing the lamps without their protective jackets, always wear protective clothing (face shield with neck protector, protective jacket and lint-free, cut-resistant gloves). For more information see the relevant in-pack leaflets and operating instructions.

    技术数据

    电参数

    标称电流

    57 安培

    标称功率

    1200.00 W

    电流控制范围

    41…63 安培

    标称电压

    22.0 V

    尺寸和重量

    直径

    46.5 mm

    长度

    345.0 mm

    含灯头长度 (不含针脚/连接装置)

    308.00 mm

    光中心 (LCL)

    144.0 mm


    输入端线缆长度

    235 mm

    产品重量

    543.00 g

    冷电极间隙

    3.5 mm

    接线长度

    228.0

    温度

    夹点处允许的最高环境温度

    230 °C

    寿命

    寿命

    3000 h

    Service Warranty Lifetime

    3500 h

    更多的产品数据

    阳极灯头 (标准名称)

    SFaX30-9.5

    阴极灯头 (标准名称)

    SFa30-20

    功能

    散热

    强制

    燃点位置

    s 15 p 15


    Environmental information

    Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

    Date of Declaration

    05-03-2024

    Primary Article Identifier

    4008321741547 | 4062172030496

    Candidate List Substance 1

    Lead

    CAS No. of substance 1

    7439-92-1

    Safe Use Instruction

    The identification of the Candidate List substance is sufficient to allow safe use of the article.

    Declaration No. in SCIP database

    9216bf4f-e70a-4162-b102-76c4b3b8a81a | ff4d17fa-1438-4bc2-a606-af20217550d1

    包装信息

    EAN

    单位

    尺寸

    重量

    音量

    4062172030496VS

    1500mm x 204mm x 204mm1339.00g20.81dm³
