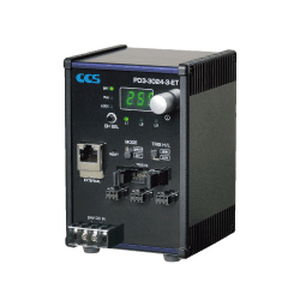

    CCS希希爱视   PD3-3024-3-ETK   数字电源
    • CCS希希爱视   PD3-3024-3-ETK   数字电源

    CCS希希爱视 PD3-3024-3-ETK 数字电源

    CCS希希爱视 PD3-3024-3-ETK 数字电源
    马上咨询
    客服电话
    13246646513 13682357549

    0755-83317701 0755-84670052

    CCS希希爱视   PD3-3024-3-ETK   数字电源

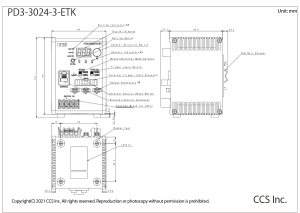

    外观尺寸W 84 mm x D 82.6 mm x H 120 mm
    适合光源(输出定额)Light Units with 24 VDC input
    Total for 3 channels: 28 W
    通道数3 channels
    发光方式Constant/Strobe lighting
    驱动方式Constant lighting
    调光方式PWM control, Lighting time control
    PWN频率125 kHz
    输入电压24 VDC (21.6 to 26.4 V)
    频率50/60 Hz
    消耗功率32 W max.
    输出电压24 VDC
    输出电流Total for 3 channels: 1.1 A
    调光Manual: 256-step using the front setting switch
    External: Command input via TCP/IP or UDP/IP communication
    错误检测显示OCP is displayed on the digital display
    错误检测输出Command sent when overcurrent output is detected.
    过电流保护Operates at 107% of rated output current or higher. Reset by pressing operation setting switch for at least 1 second or by cycling the power supply.
    *Do not intentionally short-circuit the positive and negative output terminals.
    输出端口SMP-03V-BC x 3
    外部控制端口Trigger input: MIL connector (MIL-C-83503 compliant), 10 pins
    For setting the light intensity/mode: RJ-45 connector
    适合规格CE, UKCA, RoHS
    使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
    保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
    冷却方式Natural air-cooling
    重量400 g
    材质Aluminium, ABS
    附属品使用说明书
    备注Keep-alive functions monitor the validity of the connection of the machine to the network, wherein to prevent the connection from dropping, a signal is periodically sent between machines.
    Program【Sample Program】
    Sample programs are available. See the 选件 tab.
