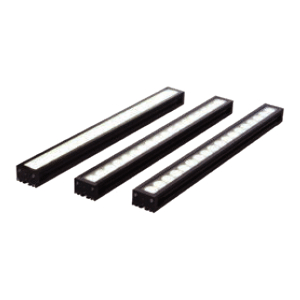

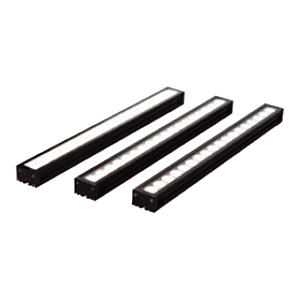

CCS希希爱视 HLDL3-600X28SW-DF-M 条形光源
LED发光颜色 | White |
---|---|
峰值发光波长 | 5700 K |
外观尺寸 | W 620 mm x D 44 mm x H 30 mm |
输入电压 | 24 VDC |
消耗功率 | 59 W max. |
极性, 信号 | 1: (+), 2: NC, 3: (-) |
线缆长度 | 300 mm |
外壳材质 | Aluminum alloy |
输入端口 | SMR-03V-B |
适合规格 | CE, UKCA, RoHS, REACH IEC 62471 HLDL3-600X28SW-DF-N: Mod risk HLDL3-600X28SW-DF-M: Low risk HLDL3-600X28SW-DF-W: Low risk |
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
冷却方式 | Natural air-cooling |
重量 | HLDL3-600X28SW-DF-N: 1200 g max. HLDL3-600X28SW-DF-M: 1200 g max. HLDL3-600X28SW-DF-W: 1240 g max. |
附属品 | 使用说明书 |
注意事项 | Combination example of branch cable and power supply FCB-W series: PD3-10024 type |
备注 | *The light unit is shipped with a low-uniformity, high-transmittance diffusion plate mounted. For HLDL3-600X28SW-DF-W, however, the optional diffuser DF-HLDL3-600 is installed. *Please inquire if you would like to use in combination with a strobe control unit (overdrive type) |
