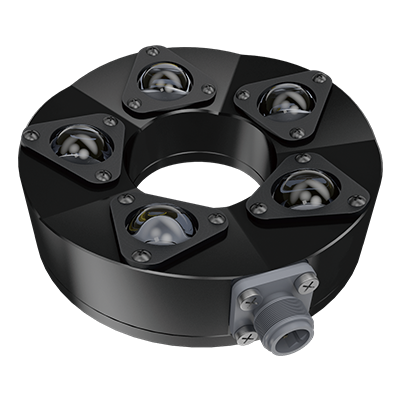

CCS希希爱视 HLDR-IP67-100VL3-385 紫外 / 紫光源
LED发光颜色 | Violet |
---|---|
峰值发光波长 | 385 nm typ, 395 nm typ, 405 nm typ |

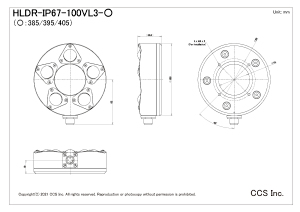

外观尺寸 | Outer diameter 100 mm, Inner diameter 43 mm, Height 35.5 mm |
输入电压 | 24 VDC |
消耗功率 | 18 W max. |
极性, 信号 | 1: (24+), 2: NC, 3: GND(-), 4: NC |
外壳材质 | Body: aluminum alloy (black anodized) Screws: SUS Washers: SUS, elastomer (TPE) Connectors: PA resin Lens: silicone |
输入端口 | XS2M-D423 (Manufactured by OMRON) |
适合规格 | CE, UKCA, RoHS, REACH IEC 62471 HLDR-IP67-100VL3-385: High risk HLDR-IP67-100VL3-395: High risk HLDR-IP67-100VL3-405: Mod risk |
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
冷却方式 | Natural air-cooling |
重量 | 420 g max. |
附属品 | 使用说明书 |
注意事项 | * After cleaning manufacturing lines, be sure to wipe away any moisture remaining on the lens. Imaging can be affected by moisture on the lens. * Use water to wash away any cleaning agent adhered to this product. * Use water to wash away any oils or chemicals adhered to this product. * The Control Unit connectors (SM connectors) on dedicated cables are not waterproof. |
备注 | IP67 is the protection classification of an electric device against intrusion of foreign objects. -The first digit, 6, indicates the following protection level. Dust protected: Totally protected against dust. -The second digit, 7, indicates the following protection level. Immersion protected: Protected against short periods of immersion in water under defined conditions of pressure and time. If the height of the device is less than 850 mm, immersion at a depth of 1 m is allowed for a duration of 30 minutes. |
