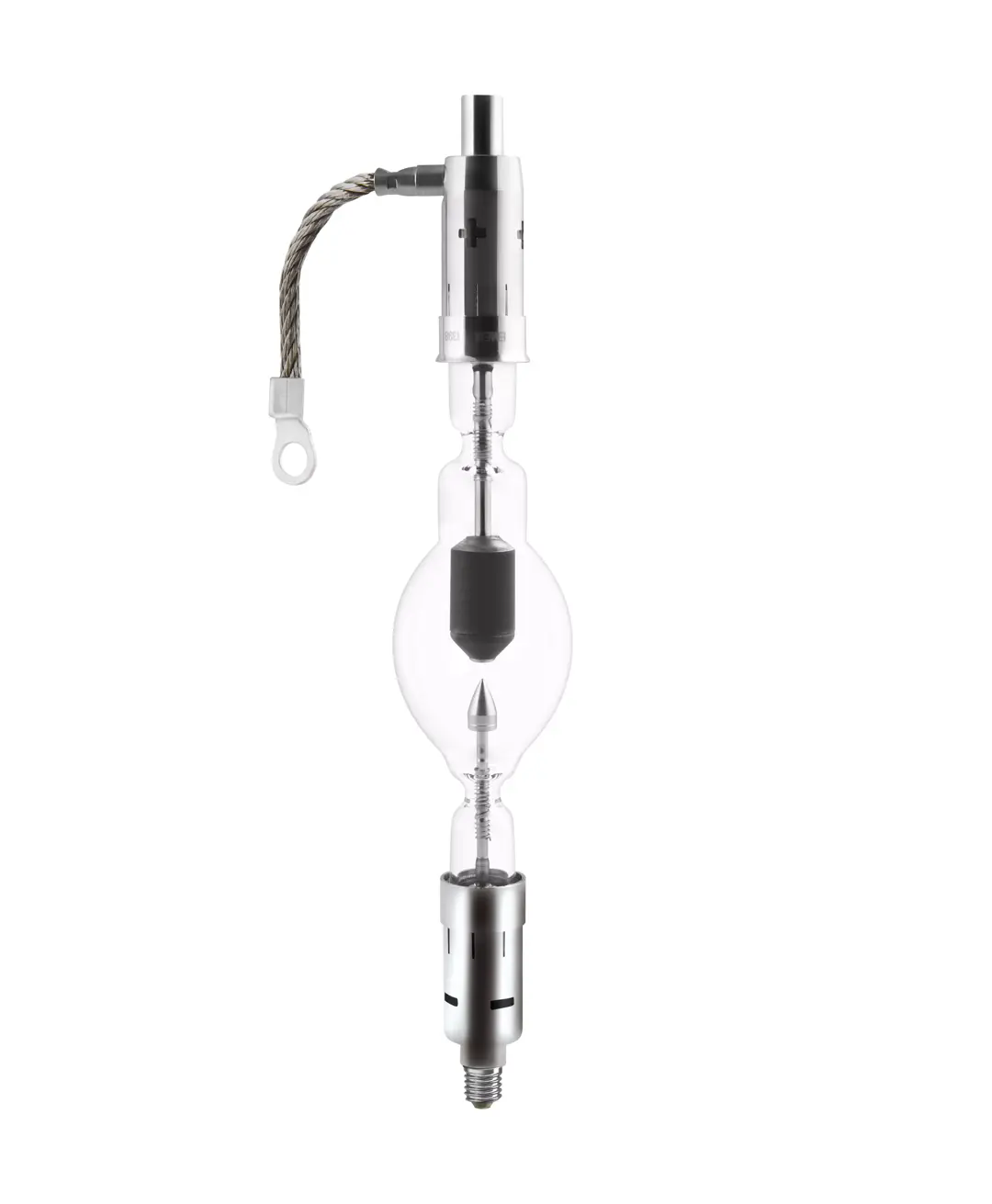

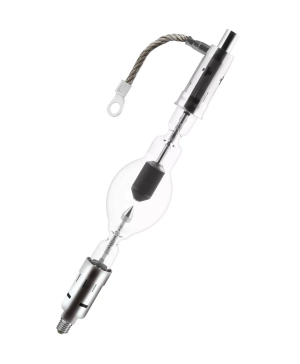

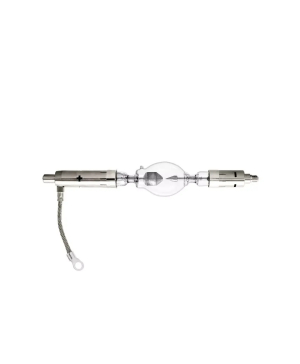

OSRAM 欧司朗 XBO 3000 W/DHP OFR 氙气短弧灯
- Short arc with highest luminance for brighter screen illumination
- A lifetime of reliable performances with constant 6000 K color temperature
- Easy to maintain
- High level of arc stability
- Hot restart and instant light on screen
- Dimmable in a wide range
- Cinema projection
安全建议

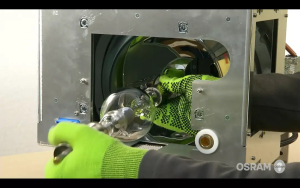

Because of their high luminance, UV radiation and internal pressure in both the hot and cold state, XBO lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Xenon lamps are highly explosive. When hot, xenon lamps can cause burn marks. They should only be handled when the lamp is at room temperature. Always use the protective jackets supplied when handling these lamps. When packing the lamps and when installing or removing the lamps without their protective jackets, always wear protective clothing (face shield with neck protector, protective jacket and lint-free, cut-resistant gloves). For more information see the relevant in-pack leaflets and operating instructions.
技术数据
电参数
标称电流
105 安培
标称功率
3000.00 W
电流控制范围
77…113 安培
标称电压
29.0 V
尺寸和重量
直径
55.0 mm
长度
345.0 mm
含灯头长度 (不含针脚/连接装置)
295.00 mm
输入端线缆长度
130 mm
产品重量
581.00 g
光中心 (LCL)
123.0 mm
冷电极间隙
4.5 mm
接线长度
130.0
温度
夹点处允许的最高环境温度
230 °C
寿命
寿命
1500 h
Service Warranty Lifetime
1900 h
更多的产品数据
阳极灯头 (标准名称)
SFaX27-14x80
阴极灯头 (标准名称)
SFc27-16/55
功能
散热
强制
燃点位置
s 15 p 15
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)Date of Declaration
05-03-2024
Primary Article Identifier
4008321309532 | 4008321330048 | 4008321865496 | 4052899091818 | 4052899096073 | 4052899195783 | 4052899287785 | 4052899468191 | 4062172030410
Candidate List Substance 1
Lead
CAS No. of substance 1
7439-92-1
Safe Use Instruction
The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database
A303E60B-72E8-4104-9C0C-1F16ADEED959 | 2C70619C-7452-40E1-9F11-72C36A77558D | | 34a49bce-cf7a-477b-8d7b-991718631ed4
包装信息
EAN | 单位 | 件 | 尺寸 | 重量 | 音量 |
|---|---|---|---|---|---|
| 4052899096073 | VS | 1 | 590mm x 234mm x 229mm | 1553.00g | 31.62dm³ |
| 4062172030410 | VS | 1 | 500mm x 204mm x 204mm | 1377.00g | 20.81dm³ |
