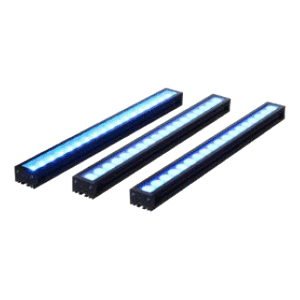

CCS希希爱视 HLDL3-1500X28BL-DF-N 条形光源
LED发光颜色 | Blue |
---|---|
峰值发光波长 | 465 nm typ. |

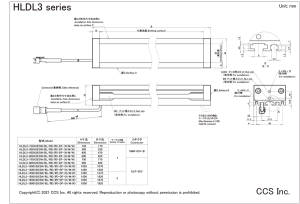

外观尺寸 | W 1520 mm x D 44 mm x H 30 mm |
输入电压 | 24 VDC |
消耗功率 | 147 W max. |
极性, 信号 | 1: (+), 2: (-) |
线缆长度 | 300 mm |
外壳材质 | Aluminum alloy |
输入端口 | ELP-02V x 2 |
适合规格 | CE, UKCA, RoHS, REACH IEC 62471 HLDL3-1500X28BL-DF-N: High risk HLDL3-1500X28BL-DF-M: Mod risk HLDL3-1500X28BL-DF-W: Mod risk |
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
冷却方式 | Natural air-cooling |
重量 | HLDL3-1500X28BL-DF-N: 3000 g max. HLDL3-1500X28BL-DF-M: 3000 g max. HLDL3-1500X28BL-DF-W: 3100 g max. |
附属品 | 使用说明书 |
备注 | *Please inquire if you would like to use in combination with a strobe control unit (overdrive type) *Use two extension cables of the same length to connect the Light Unit. Using cables of different lengths may cause uneven light emission due to different cable specifications. |
