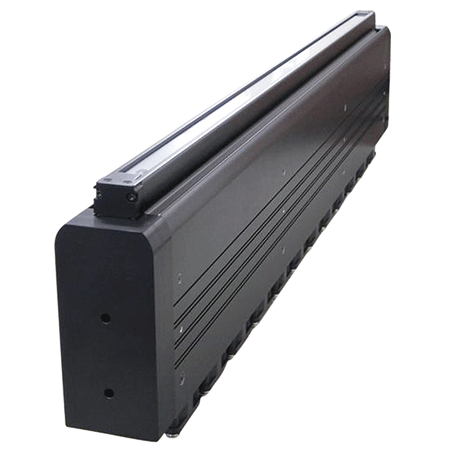

CCS希希爱视 LN-GA-n△-FN CCS × AItec
| LED发光颜色 | White, red or blue "△" in the model name indicates the LED color with one of the following letters: SW (white), RD (red), or BL (blue). |
|---|---|
| 外壳材质 | Aluminum alloy |
| 适合规格 | CE, UKCA, RoHS [IEC 62471] SW: Mod risk, RD: Exempt, BL: Mod risk |
| 使用温湿度 | Temperature: 0 to 40℃, Humidity: 30% to 85%RH (with no condensation) |
| 保存温湿度 | Temperature: 0 to 50℃, Humidity: 30% to 85%RH (with no condensation) |
| 冷却方式 | 强制冷却 |

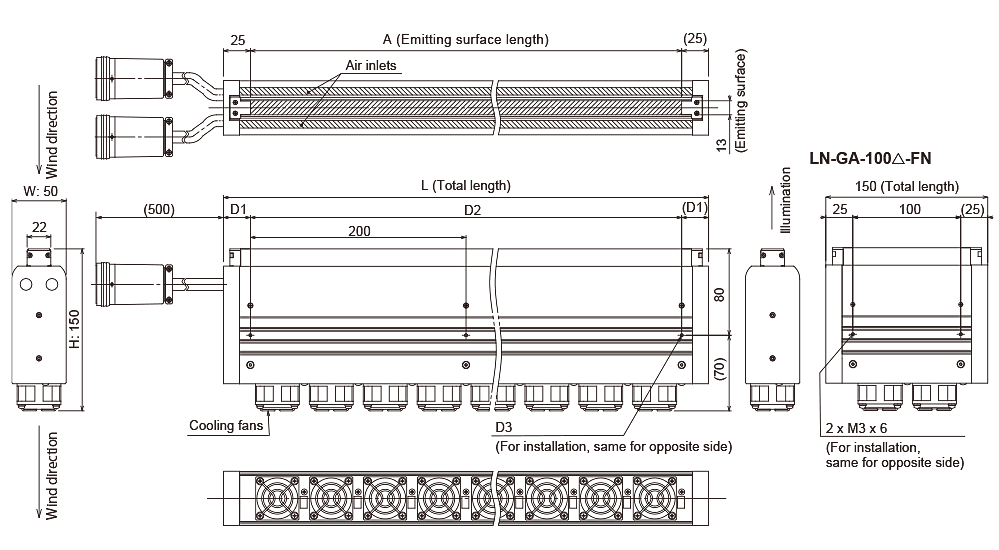

Dimensions
Please check the download document for details of the external dimensions.
Please check specifications for size details.
Specifications
| Model name*1 | LxWxH (mm) | Emitting surface length (Dimension A)*2 (mm) | D1 | D2 | D3 | Weight (kg) | Number of LED blocks*3 | Power consumption | Required light cable connection | Applicable Control Units |
|---|---|---|---|---|---|---|---|---|---|---|
| LN-GA-100△-FN | 150x50x150 | 100 | See the above diagram. | 1.5 | 4 | 77 | 12-pin metal connector, 5-pin temperature sensor connector, 2-pin fan connector | PSCC-J1A-30048-0401 | ||
| LN-GA-200△-FN | 250x50x150 | 200 | 25 | 1 x 200 = 200 | 2 x M3 x 6 | 2.3 | 8 | 154 | 12-pin metal connector x 2pcs., 5-pin temperature sensor connector, 2-pin fan connector | |
| LN-GA-300△-FN | 350x50x150 | 300 | 75 | 1 x 200 = 200 | 2 x M3 x 6 | 3.2 | 12 | 231 | ||
| LN-GA-400△-FN | 450x50x150 | 400 | 25 | 2 x 200 = 400 | 3 x M3 x 6 | 4 | 16 | 308 | 37-pin metal connector x 2pcs. | PSCC-J1A-60048-0401 |
| LN-GA-500△-FN | 550x50x150 | 500 | 75 | 2 x 200 = 400 | 3 x M3 x 6 | 4.8 | 20 | 384 | ||
| LN-GA-600△-FN | 650x50x150 | 600 | 25 | 3 x 200 = 600 | 4 x M3 x 6 | 5.7 | 24 | 461 | ||
| LN-GA-700△-FN | 750x50x150 | 700 | 75 | 3 x 200 = 600 | 4 x M3 x 6 | 6.5 | 28 | 538 | PSCC-J1A-10C48-0401 | |
| LN-GA-800△-FN | 850x50x150 | 800 | 25 | 4 x 200 = 800 | 5 x M3 x 6 | 7.4 | 32 | 615 | 37-pin metal connector x 3pcs. | |
| LN-GA-900△-FN | 950x50x150 | 900 | 75 | 4 x 200 = 800 | 5 x M3 x 6 | 8.2 | 36 | 692 | ||
| LN-GA-1000△-FN | 1,050x50x150 | 1,000 | 25 | 5 x 200 = 1000 | 6 x M3 x 6 | 9.1 | 40 | 768 | ||
| Model name*1 | LxWxH (mm) | Emitting surface length (Dimension A)*2 (mm) | D1 | D2 | D3 | Weight (kg) | Number of LED blocks*3 | Power consumption | Light cable connection | Applicable Control Units |
|---|---|---|---|---|---|---|---|---|---|---|
| LN-GA-1100△-FN | 1,150x50x150 | 1,100 | 75 | 5 x 200 = 1000 | 6 x M3 x 6 | 9.9 | 44 | 845 | 37-pin metal connector x 3pcs. | PSCC-J1A-15C48-0401 |
| LN-GA-1200△-FN | 1,250x50x150 | 1,200 | 25 | 6 x 200 = 1200 | 7 x M3 x 6 | 10.7 | 48 | 922 | 37-pin metal connector x 4pcs. | |
| LN-GA-1300△-FN | 1,350x50x150 | 1,300 | 75 | 6 x 200 = 1200 | 7 x M3 x 6 | 11.6 | 52 | 999 | ||
| LN-GA-1400△-FN | 1,450x50x150 | 1,400 | 25 | 7 x 200 = 1400 | 8 x M3 x 6 | 12.4 | 56 | 1,076 | ||
| LN-GA-1500△-FN | 1,550x50x150 | 1,500 | 75 | 7 x 200 = 1400 | 8 x M3 x 6 | 13.3 | 60 | 1,152 | ||
| LN-GA-1600△-FN | 1,650x50x150 | 1,600 | 25 | 8 x 200 = 1600 | 9 x M3 x 6 | 14.1 | 64 | 1,229 | 37-pin metal connector x 5pcs. | PSCC-J1A-10C48-0401 x 2 |
| LN-GA-1700△-FN | 1,750x50x150 | 1,700 | 75 | 8 x 200 = 1600 | 9 x M3 x 6 | 15.0 | 68 | 1,306 | ||
| LN-GA-1800△-FN | 1,850x50x150 | 1,800 | 25 | 9 x 200 = 1800 | 10 x M3 x 6 | 15.8 | 72 | 1,383 | ||
| LN-GA-1900△-FN | 1,950x50x150 | 1,900 | 75 | 9 x 200 = 1800 | 10 x M3 x 6 | 16.6 | 76 | 1,460 | 37-pin metal connector x 6pcs. | |
| LN-GA-2000△-FN | 2,050x50x150 | 2,000 | 25 | 10 x 200 = 2000 | 11 x M3 x 6 | 17.5 | 80 | 1,536 |
| Model name*1 | LxWxH (mm) | Emitting surface length (Dimension A)*2 (mm) | D1 | D2 | D3 | Weight (kg) | Number of LED blocks*3 | Power consumption | Light cable connection | Applicable Control Units |
|---|---|---|---|---|---|---|---|---|---|---|
| LN-GA-2100△-FN | 2,100x50x150 | 2,100 | 75 | 10 x 200 = 2000 | 11 x M3 x 6 | 18.3 | 84 | 1,613 | 37-pin metal connector x 6pcs. | PSCC-J1A-15C48-0401 x 2 |
| LN-GA-2200△-FN | 2,200x50x150 | 2,200 | 25 | 11 x 200 = 2200 | 12 x M3 x 6 | 19.2 | 88 | 1,690 | ||
| LN-GA-2300△-FN | 2,300x50x150 | 2,300 | 75 | 11 x 200 = 2200 | 12 x M3 x 6 | 20.0 | 92 | 1,767 | 37-pin metal connector x 7pcs. | |
| LN-GA-2400△-FN | 2,400x50x150 | 2,400 | 25 | 12 x 200 = 2400 | 13 x M3 x 6 | 20.9 | 96 | 1,844 | ||
| LN-GA-2500△-FN | 2,500x50x150 | 2,500 | 75 | 12 x 200 = 2400 | 13 x M3 x 6 | 21.7 | 100 | 1,920 | ||
| LN-GA-2600△-FN | 2,600x50x150 | 2,600 | 25 | 13 x 200 = 2600 | 14 x M3 x 6 | 22.5 | 104 | 1,997 | ||
| LN-GA-2700△-FN | 2,700x50x150 | 2,700 | 75 | 13 x 200 = 2600 | 14 x M3 x 6 | 23.4 | 108 | 2,074 | 37-pin metal connector x 8pcs. | |
| LN-GA-2800△-FN | 2,800x50x150 | 2,800 | 25 | 14 x 200 = 2800 | 15 x M3 x 6 | 24.2 | 112 | 2,151 | ||
| LN-GA-2900△-FN | 2,900x50x150 | 2,900 | 75 | 14 x 200 = 2800 | 15 x M3 x 6 | 25.1 | 116 | 2,228 | ||
| LN-GA-3000△-FN | 3,000x50x150 | 3,000 | 25 | 15 x 200 = 3000 | 16 x M3 x 6 | 25.9 | 120 | 2,304 |
- *1 "△" mark in the model name indicates the LED color with one of the following letters: SW (white), RD (red), or BL (blue).
- *2 The available emitting surface lengths are in units of 100 mm.
- *3 An LED block is a batch of LEDs implemented on the same circuit. This is also the minimum scope of settings for light intensity and alarm on the dedicated power supply, PSCC-J1A series. Customers can selectively replace the Implementation Board including the LED blocks to repair the Light Unit by themselves. If that is required,」⇒「To repair the Light Unit , customers can selectively replace the Implementation Board including the LED blocks. If this replacement is required, please contact your local sales representative.
Notes:
- These Light Units conform to the safety standard EN 62471.
- Input volutage : DC48 V
