    HAMAMATSU 滨松  EQ-77-QZ-S   激光驱动光源 (LDLS)

    HAMAMATSU 滨松 EQ-77-QZ-S 激光驱动光源 (LDLS)

    HAMAMATSU 滨松 EQ-77-QZ-S 激光驱动光源 (LDLS)

    EQ-77-QZ-S 是一款高输出功率 LDLS,产生的辐射照度比标准型号的 EQ-99X LDLS 高约 3 倍。为了保持其高输出功率,灯头需要氮气吹扫并连接到水冷机组。

    马上咨询
    客服电话
    13246646513 13682357549

    0755-83317701 0755-84670052

    HAMAMATSU 滨松  EQ-77-QZ-S   激光驱动光源 (LDLS)

    特点

    • Extremely broad wavelength range:170 nm to 2500 nm
    • Long lifetime:10 000 hours
    • High radiance from a small plasma

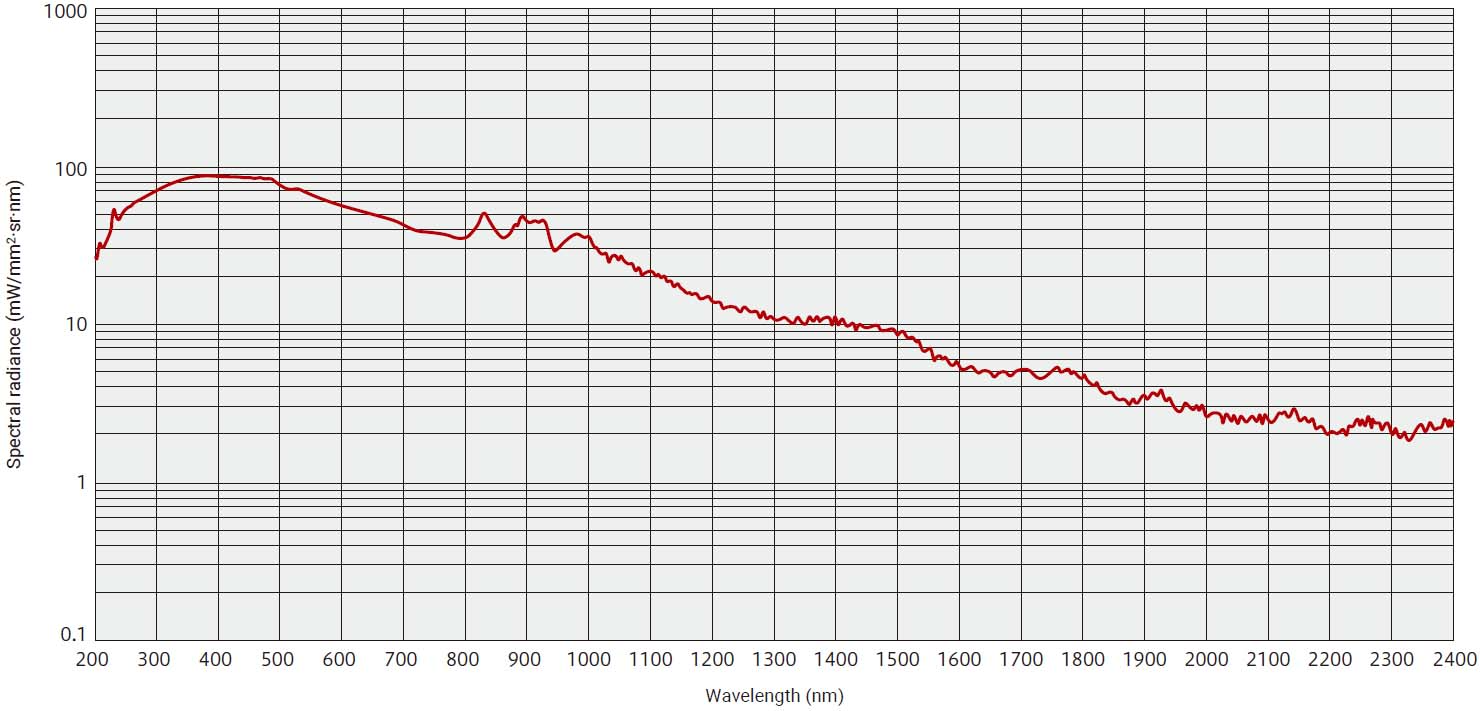

    光谱辐射照度

    详细参数



    ParameterDescription / ValueUnit
    Optical interface*1Diverging beam (Single beam)
    Wavelength range170 to 2500nm
    Plasma size (FWHM)Typ.125 × 320μm
    Numerical apertureNA0.5
    Lifetime*2Typ.10 000h
    Warm-up time30min
    Laser classClass 1
    Spectral radiance(at 500 nm)Typ.75mW/mm2·sr·nm
    Broadband optical powerTyp.2.75W
    Output window sizeΦ22mm
    Window material*3Quartz
    Cooling methodWater cooling*4*5
    Nitrogen purgeRequired. Grade 4.8 or higher, filtered to 5 μm. 20 psiG ±2 psiG
    Applicable standardsEN 61010-1
    EN 61326-1
    IEC 60825-1
    IEC 62471
    EN 50581
    Device configurationLamphead, Power supply controller, Remote control, Necessary cables
    Power ratingInput voltage (AC)100 to 240V
    Power frequency50 / 60Hz
    Power consumption350W

    *1 Dual-beam output mode can be selected as an option. See page 4 for detailed information.

    *2 Windows may need to be replaced depending on the extent of contamination and usage conditions.

    *3 YAG (190 nm to 2500 nm) and BK7 (350 nm to 2500 nm) windows are also selectable as options.

    *4 Cooling water conditions Lamphead: ≥0.5 L/min, 18 °C to 30 °C, 100 psiG (0.69 MPa) max. inlet pressure Controller: No cooling required

    *5 A chiller kit is available as an option.


    外形尺寸图(单位:mm)

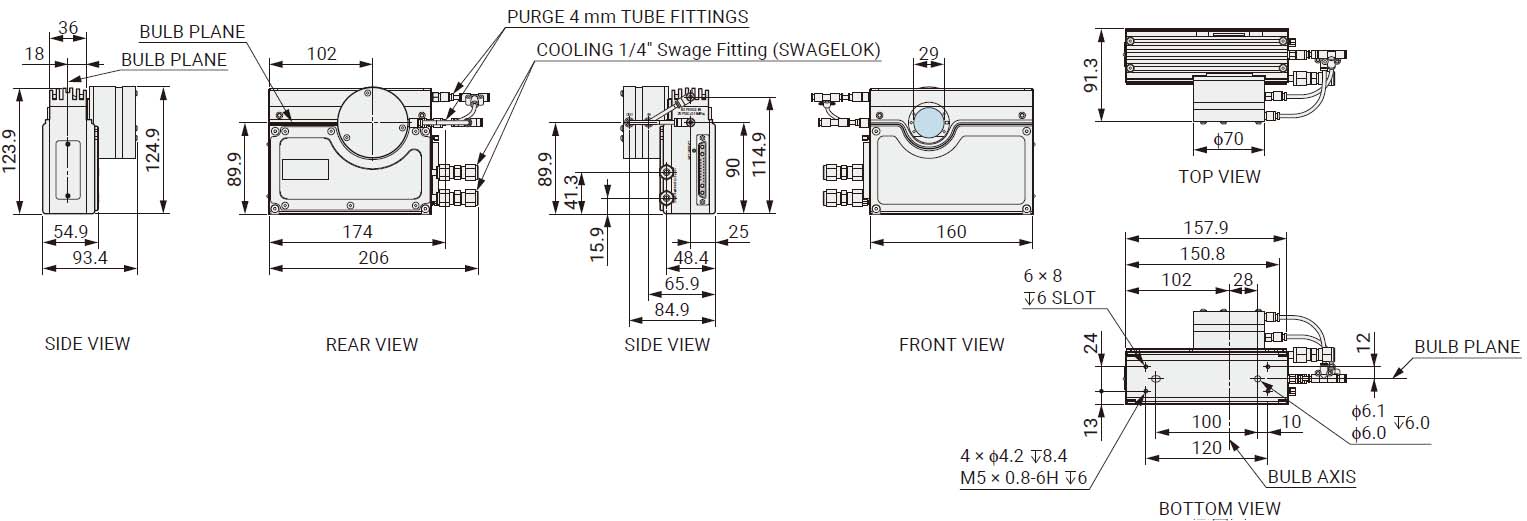

    Lamphead

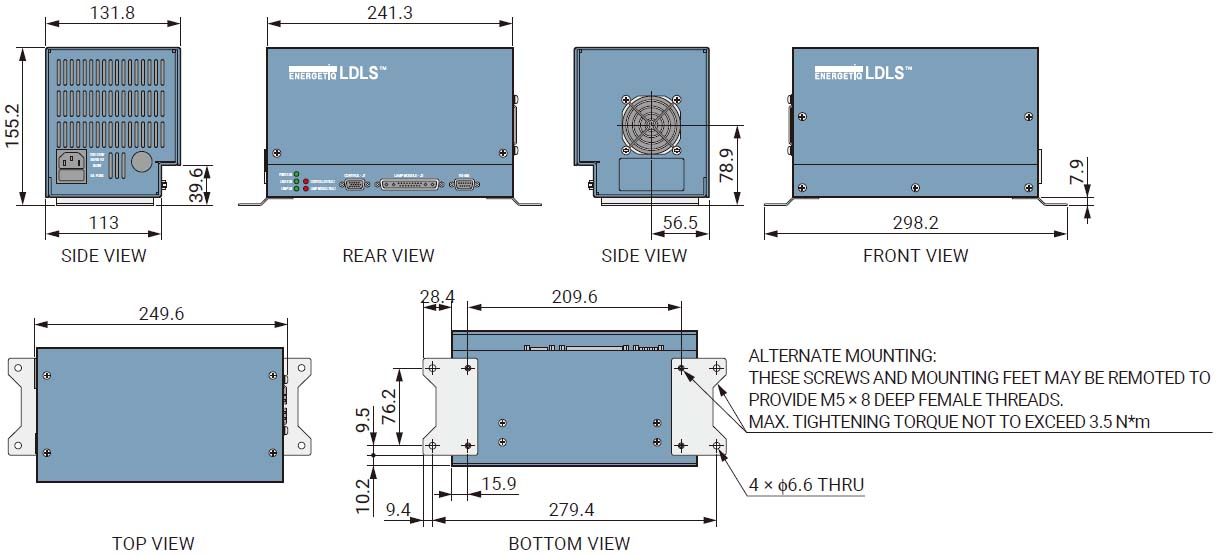

    Controller
