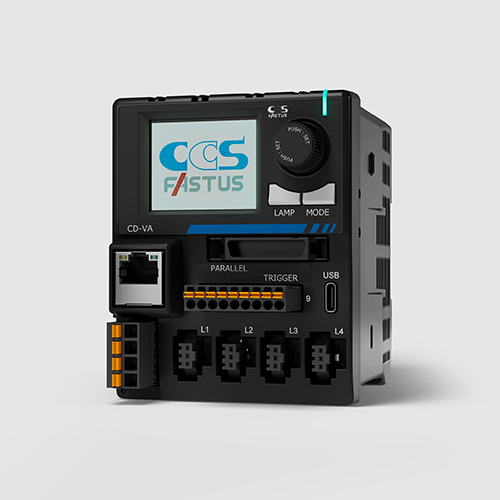

CCS希希爱视 CD-VA20024-4PE 数字电源

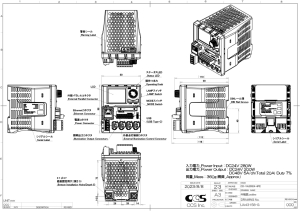

| 外观尺寸 | W 80 mm x D 99 mm x H 98 mm |
|---|---|
| 适合光源(输出定额) | Ethernet communication type 24 VDC lighting 4 channels total: 200 W (1 channel 50 W or less) |
| 通道数 | 4 channels |
| 发光方式 | Continuous lighting, strobe lighting (overdrive when emission time is 1000 μs or less) |
| 频闪发光时间 | [PWM frequency 100 kHz: Lighting time] 10 μs ~ 9990 μs (10 μs steps), 1 ms to 999 ms (1 ms steps) [PWM frequency 130 kHz: lighting time] 7.7 μs ~ 7684.6 μs (7.7 μs steps), 1 ms ~ 999 ms (1 ms steps) [Lighting cycle limit] Duty 7% (requires cycle of 14.3x or more pulse width) |
| 驱动方式 | Constant lighting |
| 调光方式 | PWM control (frequency: 100 kHz, 130 kHz), variable-voltage control |
| 输入电流 | 24 VDC ± 10 % |
| 输出电压 | PWM mode: 24 VDC Strobe mode*1: 48 VDC Variable-voltage mode*2: LOW: 12 to 24 V, HIGH: 18 to 24 V *1 Automatically switches to 24 VDC drive when strobe emission time is 1 ms or more (the lighting time is set in units of ms). Applies 48 VDC drive when strobe emission time is 1,000 μs or less (the lighting time is set in units of μs). *2 Overdrive is unavailable in variable-voltage mode. |
| 输出电流 | Storobe mode: 5.0 A/channel (Duty 7%) |
| 外部控制方式 | Ethernet communication (10BASE-T/100BASE-TX) USB communication (Full-speed, Type-C connector) Parallel communication RS-232C communication |
| 通信接口 | USB communication: Serial communication via virtual COM port RS-232C communication: 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Ethernet communication: UDP, TCP, DHCP Client |
| 输出端口 | SMP-03V-BC |
| 适合规格 | [Compatible standards] CE, UKCA (Non-compliant with KC) [Environmental regulations] RoHS, REACH [Degree of protection] IP20 (IEC 60529) |
| 使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| 保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| 冷却方式 | Natural air-cooling |
| 重量 | 360 g |
| 材质 | Polycarbonate |
| 附属品 | Hardware manual x1, trigger connector x1, power connector x1 |
| 注意事项 | See the URL below for the combinations of LED lighting available when using strobe overdrive. |
| 备注 | Vibration resistance: 10-55 Hz double amplitude 1.5 mm X, Y, Z directions 2 hours each Impact resistance: Approx. 10 G, X, Y, Z directions 3 times each |
