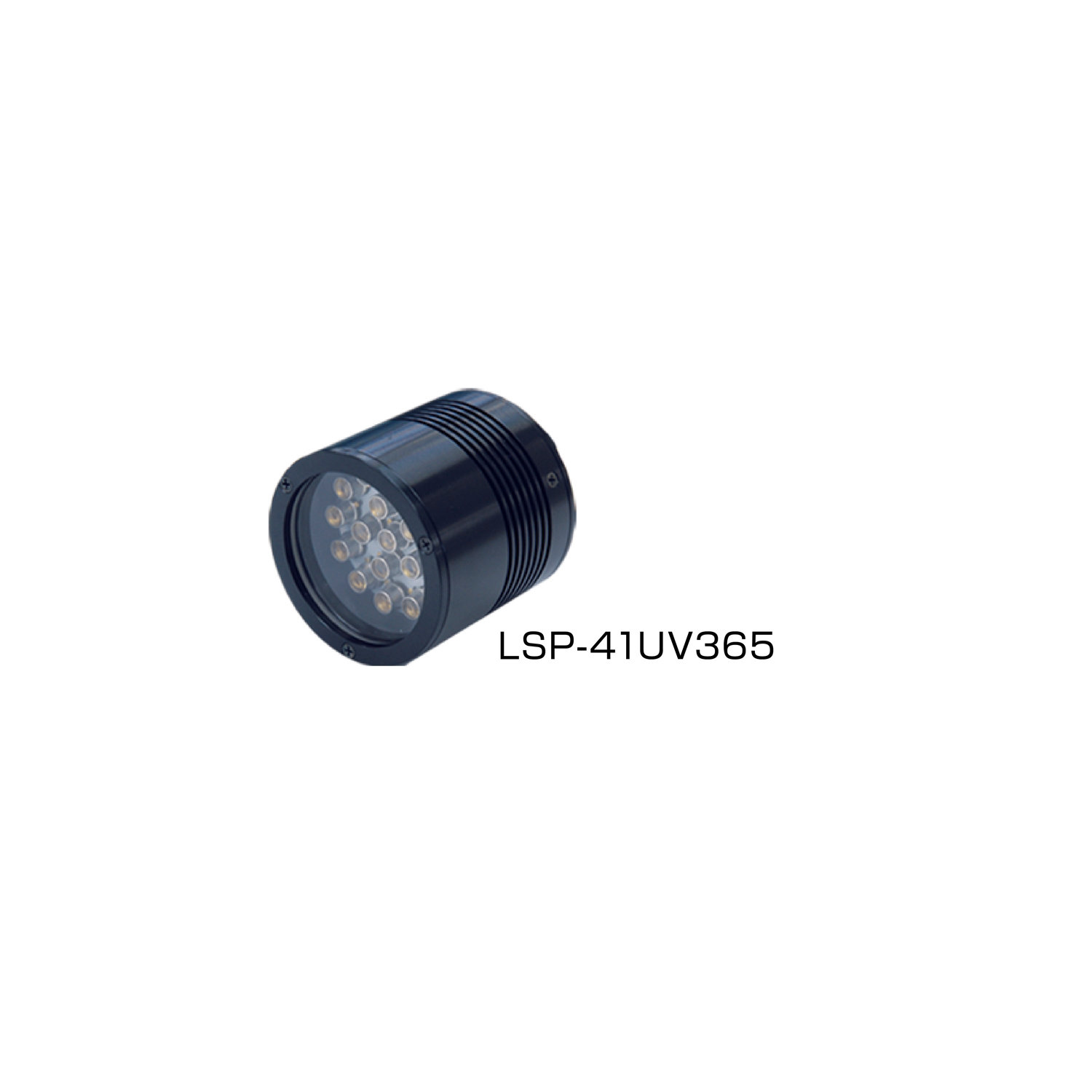

CCS希希爱视 LSP-41UV365 紫外 / 紫光源
| LED发光颜色 | Ultraviolet |
|---|---|
| 峰值发光波长 | 365 nm typ. |

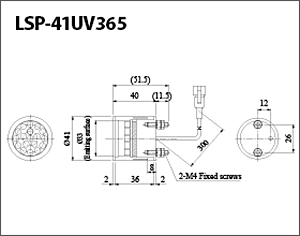

| 外观尺寸 | Outer diameter 41 mm, Total length 51.5 mm |
| 输入电压 | 24VDC |
| 消耗功率 | 1.2 W (Earlier than July 2014) / 0.9 W (After July 2014) |
| 极性, 信号 | 1: (+), 2: NC, 3: (-) |
| 线缆长度 | 300 mm |
| 外壳材质 | Aluminum alloy |
| 输入端口 | SMR-03V-B |
| 适合规格 | CE, UKCA, RoHS, IEC 62471（Exempt） |
| 使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| 保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| 冷却方式 | Natural air-cooling |
| 重量 | 115 g max. |
| 附属品 | User Manual, Radiation aperture seal, UV DANGER seal |
| 注意事项 | * UV radiation is very harmful to the naked eye. * To avoid direct exposure to ultraviolet radiation, all workers around this product must use protective equipment. * Make known to all personnel concerned the risk of ultraviolet radiation. * Take sufficient safety precautions when handling the machinery and devices incorporating this product. * Please inquire if you would like to use in combination with a Strobe Control Unit (overdrive type). |
