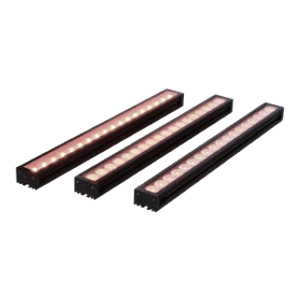

CCS希希爱视 HLDL3-750X28IR-DF-N 条形光源
LED发光颜色 | Infrared |
---|---|
峰值发光波长 | 860 nm typ. |
外观尺寸 | W 770 mm x D 44 mm x H 30 mm |
输入电压 | 24 VDC |
消耗功率 | 74 W max. |
极性, 信号 | 1: (+), 2: (-) |
线缆长度 | 300 mm |
外壳材质 | Aluminum alloy |
输入端口 | ELP-02V |
适合规格 | CE, UKCA, RoHS, REACH IEC 62471 HLDL3-750X28IR-DF-N: Mod risk HLDL3-750X28IR-DF-M: Low risk HLDL3-750X28IR-DF-W: Exempt |
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
冷却方式 | Natural air-cooling |
重量 | HLDL3-750X28IR-DF-N: 1510 g max. HLDL3-750X28IR-DF-M: 1510 g max. HLDL3-750X28IR-DF-W: 1560 g max. |
附属品 | 使用说明书 |
注意事项 | Combination example of branch cable and power supply FCB-W-EL2 series: PSB4 type |
备注 | Please inquire if you would like to use in combination with a strobe control unit (overdrive type) |
