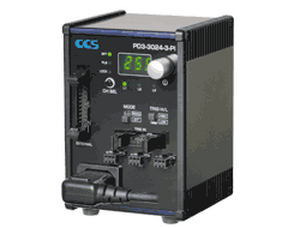

    CCS希希爱视   PD3-3024-3-PI   数字电源
    • CCS希希爱视   PD3-3024-3-PI   数字电源

    CCS希希爱视 PD3-3024-3-PI 数字电源

    CCS希希爱视 PD3-3024-3-PI 数字电源
    马上咨询
    客服电话
    13246646513 13682357549

    0755-83317701 0755-84670052

    CCS希希爱视   PD3-3024-3-PI   数字电源

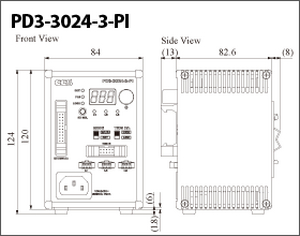

    外观尺寸W 84 mm x D 82.6 mm x H 120 mm
    适合光源(输出定额)Light Units with 24 VDC input
    Total for 3 channels: 28 W
    通道数3 channels
    发光方式Constant/Strobe lighting
    驱动方式Constant lighting
    调光方式PWM control, Lighting time control
    PWN频率125kHz
    输入电压100 to 240 VAC (+10% -15%)
    频率50/60 Hz
    消耗功率78 VA
    输出电压24VDC
    输出电流Total for 3 channels: 1.1 A
    涌入电流(typ)15 A (at 100 VAC), 30 A (at 200 VAC) from a cold start
    调光Manual: 256-step using the front setting switch
    External: 8-bit input (B0 to B7), write pulse (BRTWR), and channel selection (CHSEL0 to CHSEL2)
    错误检测显示OCP is displayed on the digital display
    错误检测输出NPN transister output to the External control connector pins between 19(OC) and 20(OE); open for normal operation, closed for overcurrent detection.
    过电流保护Operates at 107% of rated output current or higher. Reset by pressing operation setting switch for at least 1 second or by cycling the power supply.
    *Do not intentionally short-circuit the positive and negative output terminals.
    输出端口SMP-03V-BC x 3
    外部控制端口Trigger input: MIL connector (MIL-C-83503 compliant), 10 pins
    For setting the light intensity/mode: MIL connector (MIL-C-83503 compliant), 20 pins
    适合规格CE, UKCA, RoHS
    使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
    保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
    冷却方式Natural air-cooling
    重量600 g
    材质Aluminium, ABS
    附属品2m long 3-prong AC power cord with ground terminal, Instruction Guide
