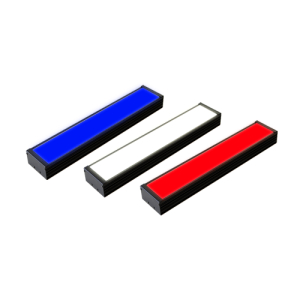

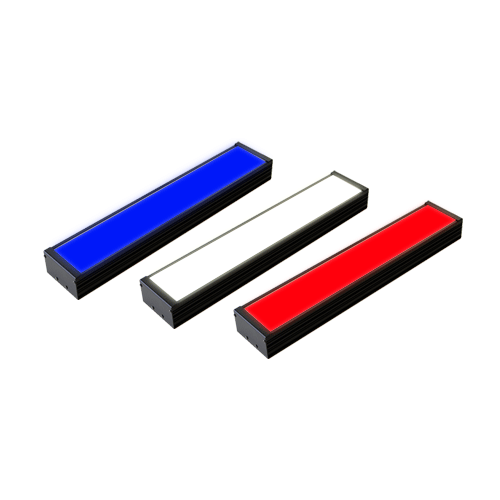

CCS希希爱视 LB-2100X50RD 条形光源
LED发光颜色 | LB-2100X50RD: Red LB-2100X50SW: White LB-2100X50BL: Blue |
---|---|
相关色温 | LB-2100X50SW: 6300 K typ. |
峰值发光波长 | LB-2100X50RD: 630 nm typ. LB-2100X50BL: 467 nm typ. |

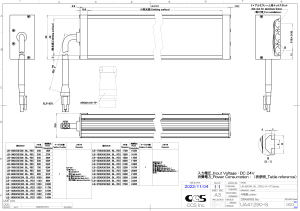

外观尺寸 | W 2121.2 mm x D 60 mm x H 33.6 mm |
输入电压 | 24 VDC |
消耗功率 | 188 W |
极性, 信号 | 1, 2, 3: (+)/4, 5, 6: (-)/7: NC |
线缆长度 | 300 mm |
外壳材质 | Aluminum alloy, Steel sheet |
输入端口 | SRCN1A16-7P |
适合规格 | CE, UKCA, RoHS IEC 624711 LB-2100X50RD : Exempt LB-2100X50SW : Exempt LB-2100X50BL : Exempt |
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (with no condensation) |
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (with no condensation) |
冷却方式 | Natural air-cooling |
重量 | 3.13 kg |
附属品 | 使用说明书 |
备注 | LB-2100X50SW / LB-2100X50BL / LB-2100X50RD is made to order. Please contact your sales representative for details. |
