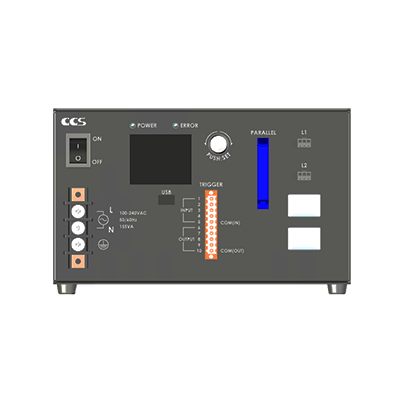

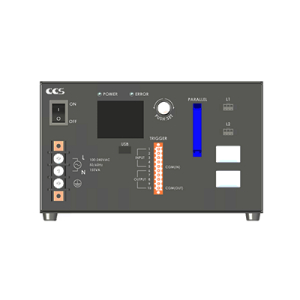

CCS希希爱视 PD4-6024-2-P 数字电源

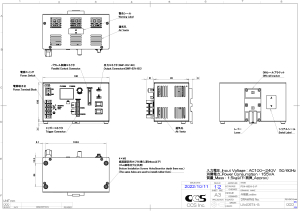

| 外观尺寸 | W 180 mm x D 95 mm x H 106 mm |
|---|---|
| 适合光源(输出定额) | 24V DC Light Units, total for all connectors: 60 W max. (SMP-03V-BC: 60 W max. per connector) |
| 通道数 | 2 channels |
| 发光方式 | Strobe lighting, continuous lighting (no overdrive) |
| 驱动方式 | Constant lighting |
| 调光方式 | PWM control |
| PWN频率 | 125 kHz |
| 输入电压 | 100 to 240 VAC (+10% -10%) |
| 频率 | 50/60 Hz |
| 消耗功率 | 155 VA |
| 输出电压 | 24VDC |
| 输出电流 | SM connector: 2.5 A / channel Total channel: 2.5 A |
| 涌入电流(typ) | 27 A (at 100 VAC), 63 A (at 240 VAC) from a cold start *When selecting a circuit breaker, refer to this value and select the product that has the trip characteristics suitable for use with switched mode power supplies. For information on the applicable trip characteristics, refer to the switched mode power supply manufacturer websites, etc. |
| 外部控制协议 | Parallel |
| 错误检测显示 | Panel surface Error lamp (red) and LCD screen display |
| 错误检测输出 | (1) Reflection in error status (USB) (2) Parallel port output (parallel) Normal: non-conducting When error detected: conducting |
| 过电流保护 | Operates at 109% or more of the output current (per channel) Recovery by power-on, panel setting knob, or error cancellation command via USB communication |
| 过电压保护 | Category II |
| 外部控制输入 | Logic switching (supports both NPN and PNP), pin assignment change |
| 输出端口 | SMP-03V-BC x 2 |
| 外部控制端口 | [Trigger input/output] Terminal block connector SL 3.50/10/180F 3.2SN OR BX (Weidmuller) 10 poles 1 to 4: input, 5: input common, 6 to 9: output, 10: output common Function allocation can be changed and checked from USB [Parallel input/output] FX2B-40PA-1.27DSA(71) (Hirose Electric) 40 poles A1 to A19: Input, A20: Input common, B1 to B19: Output, B20: Output common Function allocation can be changed and checked from USB [USB] Mini-B |
| 适合规格 | [Compatible standards] CE, UKCA [Environmental regulations] RoHS, TSCA PBT, REACH |
| 使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| 保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| 冷却方式 | Natural air-cooling |
| 重量 | 1.5 kg max. |
| 材质,涂装,表面处理 | Steel sheet, cover thickness: 1.6 mm, chassis thickness: 1.0 mm, black (leather satin) |
| 附属品 |
|
| 备注 | Equipped with ON/OFF physical switch |
