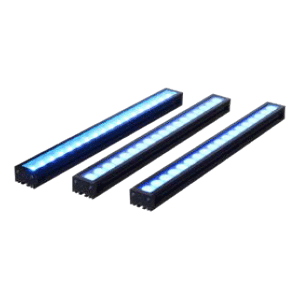

    CCS希希爱视   HLDL3-1650X28BL-DF-W   条形光源



    LED发光颜色Blue
    峰值发光波长465 nm typ.
    外观尺寸W 1670 mm x D 44 mm x H 30 mm
    输入电压24 VDC
    消耗功率161 W max.
    极性, 信号1: (+), 2: (-)
    线缆长度300 mm
    外壳材质Aluminum alloy
    输入端口ELP-02V x 2
    适合规格CE, UKCA, RoHS, REACH
    IEC 62471
    HLDL3-1650X28BL-DF-N: High risk
    HLDL3-1650X28BL-DF-M: Mod risk
    HLDL3-1650X28BL-DF-W: Mod risk
    使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
    保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
    冷却方式Natural air-cooling
    重量HLDL3-1650X28BL-DF-N: 3310 g max.
    HLDL3-1650X28BL-DF-M: 3310 g max.
    HLDL3-1650X28BL-DF-W: 3420 g max.
    附属品使用说明书
    备注*Please inquire if you would like to use in combination with a strobe control unit (overdrive type)
    *Use two extension cables of the same length to connect the Light Unit. Using cables of different lengths may cause uneven light emission due to different cable specifications.
