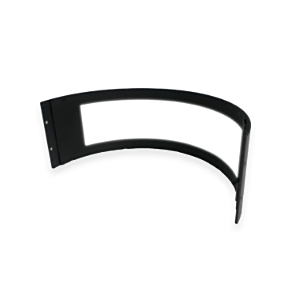

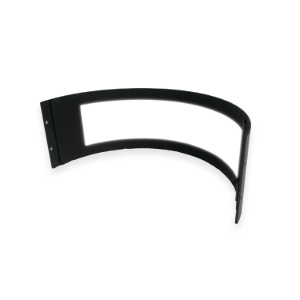

CCS希希爱视 OLB-LT-100SW-IS 有机EL光源(OLED)
LED发光颜色 | White |
---|---|
相关色温 | 4000 K |

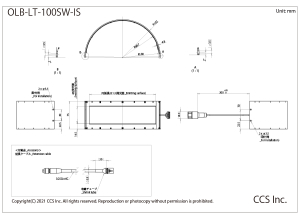

外观尺寸 | See Dimensions tab |
消耗功率 | 7.0 W max. |
线缆长度 | 0.3 m |
外壳材质 | Aluminum alloy, SUS |
输入端口 | 70107-0005 (Molex,6-pin) |
输入电流 | 0.295 A (Power supply: when using OC-G-5646-2-ET) 0.250 A (Power supply: when using OC-0736-1-ET) * When using a light unit at the maximum brightness specified, use the OC-G-5646-2-ET power supply. |
适合规格 | CE, UKCA, RoHS, REACH |
使用温湿度 | Temperature: 5 to 40 ℃, Humidity: 20 % to 85 %RH (with no condensation) |
保存温湿度 | Temperature: -20 to 50 ℃, Humidity: 20 % to 85 %RH (with no condensation) |
冷却方式 | Natural air cooling |
重量 | 190 g max. |
注意事项 | The warranty period for lighting products is for 1 year from when the product ships. Emission amounts not guaranteed. Do not apply heavy load to the cable. |
备注 | Inner surface emission type |
