CCS希希爱视 LB-400X150RD 条形光源

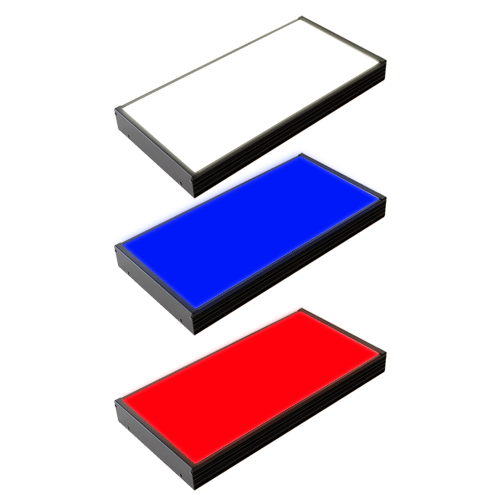

LED发光颜色 | LB-400X150RD: Red LB-400X150SW: White LB-400X150BL: Blue |
---|---|
相关色温 | LB-400X150SW: 6300 K typ. |
峰值发光波长 | LB-400X150RD: 630 nm typ. LB-400X150BL: 467 nm typ. |

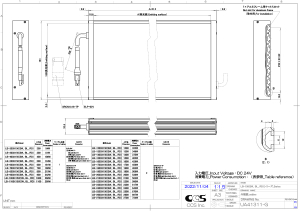

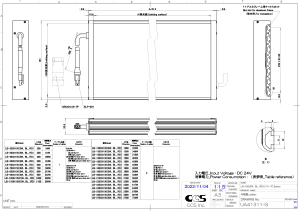

外观尺寸 | W 421.2 mm x D 161 mm x H 33.6 mm |
输入电压 | 24 VDC |
消耗功率 | 108 W |
极性, 信号 | 1: (+), 2: (-) |
线缆长度 | 300 mm |
外壳材质 | Aluminum alloy, Steel sheet |
输入端口 | ELP-02V |
适合规格 | CE, UKCA, RoHS IEC 624711 LB-400X150RD : Exempt LB-400X150SW : Exempt LB-400X150BL : Exempt |
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (with no condensation) |
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (with no condensation) |
冷却方式 | Natural air-cooling |
重量 | 1.67 kg |
附属品 | 使用说明书 |
备注 | LB-400X150SW / LB-400X150BL / LB-400X150RD is made to order. Please contact your sales representative for details. |
