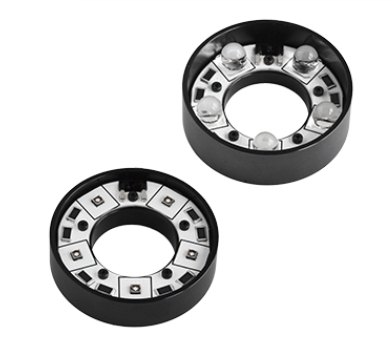

CCS希希爱视 LDR2-100UV3-365-N 紫外 / 紫光源
| LED发光颜色 | Ultraviolet |
|---|---|
| 峰值发光波长 | 365 nm typ. |

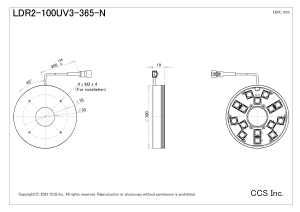

| 外观尺寸 | LDR2-100UV3-365-N: Outer diameter 100 mm, Inner diameter 30 mm, Height 19 mm LDR2-100UV3-365-W: Outer diameter 100 mm, Inner diameter 30 mm, Height 15 mm |
| 输入电压 | 24 VDC |
| 消耗功率 | 23 W max. |
| 极性, 信号 | 1: (+), 2: NC, 3: (-) |
| 线缆长度 | 300 mm |
| 外壳材质 | Aluminum alloy |
| 输入端口 | SMR-03V-B |
| 适合规格 | CE, UKCA, RoHS, REACH IEC 62471 LDR2-100UV3-365-N: High risk LDR2-100UV3-365-W: Mod risk |
| 使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| 保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| 冷却方式 | Natural air-cooling |
| 重量 | LDR2-100UV3-365-N: 210 g max. LDR2-100UV3-365-W: 240 g max. |
| 附属品 | User Manual, Radiation aperture seal, UV DANGER seal |
| 注意事项 | * Do not expose your eyes or skin to direct UV irradiation. * When using UV illumination, be sure to wear UV blocking eye wear and avoid looking at irradiating parts (emitting parts). * Do not turn on UV-LED irradiating parts (emitting parts) if they are facing someone's eyes. * Wear long sleeves and gloves to protect your skin from UV irradiation. * Thoroughly educate all those involved near the product about the dangers of UV LEDs. |
