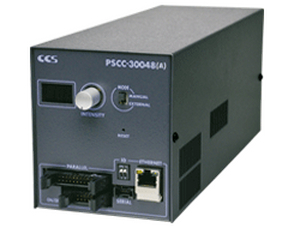

CCS希希爱视 PSCC-30048(A) 模拟电源

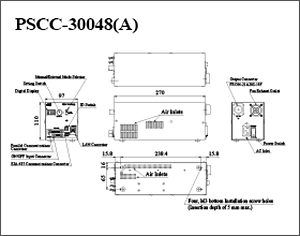

| 外观尺寸 | W 97 mm x D 270 mm x H 110 mm |
|---|---|
| 适合光源(输出定额) | 43 VDC max., 293 W max. (including 36 W max. for fans) |
| 通道数 | 1 channel |
| 发光方式 | 常时发光 |
| 驱动方式 | Constant-current system |
| 调光方式 | 可变电流控制 |
| 输入电压 | 100 to 240 VAC (+10%, -15%) |
| 频率 | 50/60 Hz |
| 消耗功率 | 360VA typ. |
| 涌入电流(typ) | 55 A (at 100 VAC), 84 A (at 240 VAC) from a cold start |
| 调光 | Set the Manual/External switch (MODE) to Manual. Set any of 256/1000 steps via the setting switch (Parallel communications: Adjustment to 256 steps only). Press and hold the switch for 2 seconds to lock the light intensity value. |
| 错误检测显示 | On the Digital display |
| 错误检测输出 | Parallel communication: Output at pins 19 and 20: Photocoupler insulation, open collector output, short circuit at alert (load current of 10 mA or less) EIA-485 communication: Checked by using a status command through EIA-485 communication Ethernet communication: Checked by using a status command through TCP/IP or UDP/IP communication |
| 输出端口 | Metal connector PRC04-21A20S-19F (Tajimi Electronics co.,ltd) |
| 外部控制端口 | ON/OFF control (available in any light intensity control modes): MIL connector, 10 pins XG4A-1031 (manufactured by OMRON) Light intensity control (for Parallel communications): MIL connector, 20 pins XG4A-2031 (manufactured by OMRON) Light intensity control (for EIA-485 communications): e-con connector, 3 pins Light intensity control (for Ethernet communications): RJ-45 connector |
| 适合规格 | CE, UKCA, RoHS |
| 使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| 保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| 冷却方式 | Forced air cooling |
| 重量 | 3100 g |
| 材质 | Steel sheet, Cover thickness: 1.0 mm, Chassis thickness: 2.0 mm, N3 (leather tone) |
| 附属品 | Instruction Guide, 2m long 3-prong AC power cord with ground terminal, Two locking Keys |
| Program | 【Sample Program】 Sample programs are available. See the 选件 tab. |
