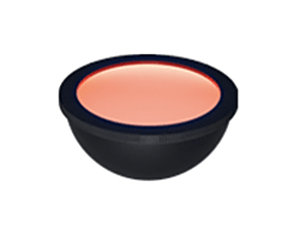

CCS希希爱视 HPD2-250RD 圆顶光源
LED发光颜色 | Red |
---|---|
峰值发光波长 | 635 nm typ. |

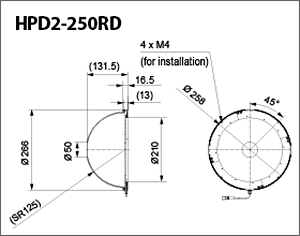

外观尺寸 | Outer diameter 266 mm, Inner diameter 210 mm, Height 131.5 mm |
输入电压 | 24VDC |
消耗功率 | 45 W max. |
极性, 信号 | 1: (+), 2: NC, 3: (-) |
线缆长度 | 300 mm |
外壳材质 | Aluminum alloy, resin |
输入端口 | SMR-03V-B |
适合规格 | CE, UKCA, RoHS, IEC 62471(Exempt) |
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
冷却方式 | Natural air-cooling |
重量 | 650 g |
附属品 | 使用说明书 |
备注 | CCS accepts special orders to change the shape of the camera-side opening to 60 mm square. The height of this special ordered Dome Light is 130.3 mm. |
