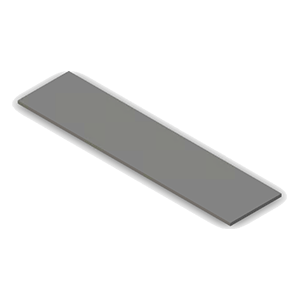

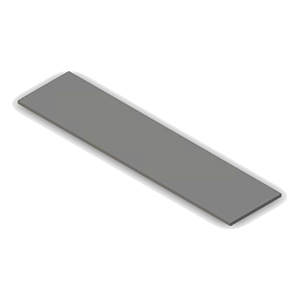

CCS希希爱视 PL-HLDL3-1650-HO 偏光板
外观尺寸 | W 1654 mm x D 37 mm x H 1.8 mm |
---|
耐热温度 | 80 ℃ |
---|
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
---|
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
---|
重量 | 133 g max. |
---|
材质 | Resin |
---|
注意事项 | - * Remove the diffuser before installing the polarizing plate. If you want to use both a polarizer and diffuser, please contact your local sales representative for a custom order.
- * Polarizing plate has a front and backside. Install the plate that has film side facing the inspected object.

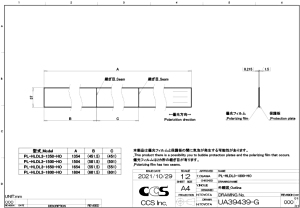

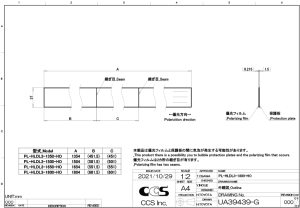

- * The polarizing plate has a seam in the film. Please refer to the Dimensions drawing for more information.
- * The attachment of the film to the resin plate may be affected by changes in the environment, but this does not impact the function or performance.
- * Not available for infrared models.
- * Heat may cause deformation or discoloring depending on the use environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections.
|
---|
备注 | Applicable products: HLDL3-1650X28(SW/BL/RD)-DF-(N/M/W) (Not available for infrared models) |
---|
