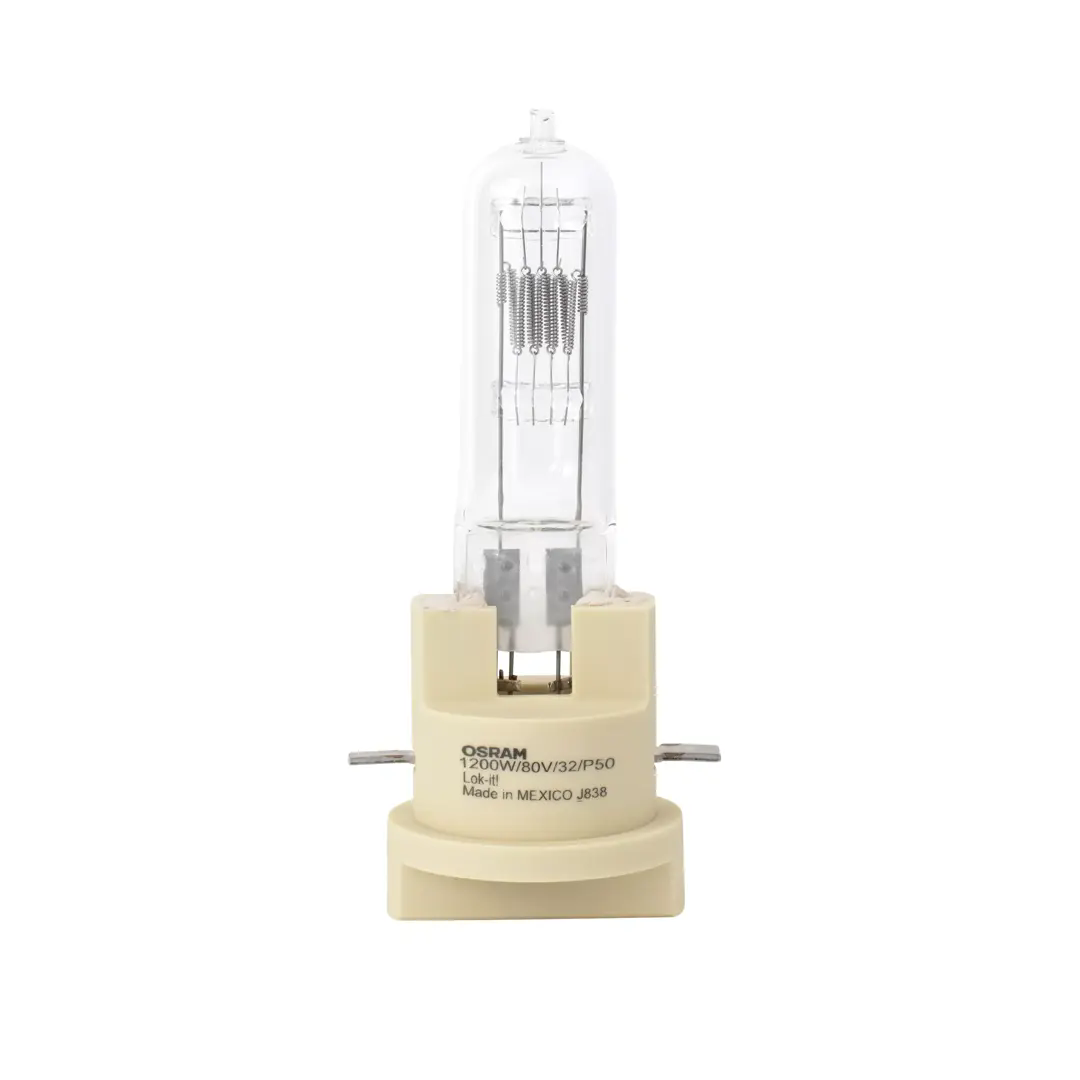

OSRAM 欧司朗 Lok-it! 1200 W 80 V/32/P50 卤素灯
- 能够实现射灯灯光的最佳利用
安全建议
To prevent personal injury or damage to property, halogen lamps may only be operated in suitable luminaires designed with suitable mechanisms (cover panel etc.) to ensure that in the event of a lamp bursting no parts/shards can escape and that during operation no ultraviolet radiation can escape. Because of the heat produced only heat-resistant lamp connections (holders) may be used. Do not operate near people, or any materials that are flammable, sensitive to heat or affected by drying out. Detailed information is available on request.
技术数据
特定分类
Order reference
LOK-IT! 1200W/3
ANSI编码
Other
电参数
标称电压
80.0 V
Energy consumption in on-mode [AGGR]
1265.0 kWh/1000h
标称功率
1200.00 W
On-mode power [AGGR]
1265.00 W
光度数据
色温
3200 K
显色指数 Ra
100
Φuse value refers to luminous flux .. [AGGR]
360
Correlated color temperature CCT [AGGR]
3308 K
Chromaticity coordinate y [AGGR]
0.395
Chromaticity coordinate x [AGGR]
0.416
Useful luminous flux (Φuse) [AGGR]
27865 lm
尺寸和重量
直径
23.0 mm
长度
140.0 mm
光中心 (LCL)
84.0 mm
照明场
14.7*14.5 mm²
寿命
寿命
250 h
更多的产品数据
Lighting technology used [AGGR]
HL
功能
燃点位置
任意
认证与标准
Energy efficiency class [AGGR]
G
物流数据
EAN 10 of contained light source
4008321382795
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)Date of Declaration
22-05-2024
Primary Article Identifier
4008321382795
Candidate List Substance 1
No declarable substances contained
Declaration No. in SCIP database
No declarable substances contained
包装信息
EAN | 单位 | 件 | 尺寸 | 重量 | 音量 |
|---|---|---|---|---|---|
| 4008321382795 | FS | 1 | 70mm x 70mm x 160mm | 178.00g | 0.78dm³ |
| 4008321382801 | VS | 12 | 294mm x 222mm x 175mm | 2341.00g | 11.45dm³ |
