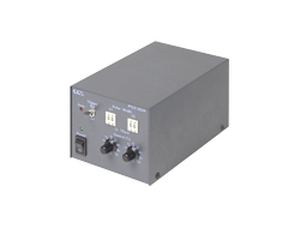

CCS希希爱视 PTU2-3012(A) 驱动超频式频闪电源

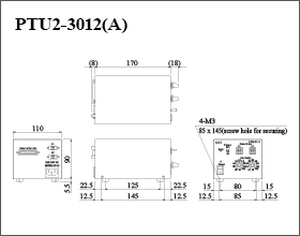

| 外观尺寸 | W 110 mm x D 170 mm x H 90 mm |
|---|---|
| 适合光源(输出定额) | 12 V/27 W (total for 2 channels) |
| 通道数 | 2 channels |
| 发光方式 | Strobe lighting |
| 驱动方式 | Constant lighting |
| 调光方式 | 发光时间控制 |
| 频率 | 50/60 Hz |
| 输出电压 | 18V DC |
| 输出电流 | 8.1 A max. |
| 涌入电流(typ) | 26 A (at 100 VAC)/63 A (at 240 VAC) *From a cold start |
| 外部控制输入 | Parallel 4 bits/channel, 5V-CMOS level input, pull-up resistance of 4.7Ω Low level: 1.13V max, High level: 3.15V min. |
| 发光脉冲宽度 | 10μs to 990μs: Set with the light pulse width setting switch and the intensity control knob on the front panel. Lighting time = Pulse Width x Control Light pulse width: 0 to 99 x 10μs (external mode only) Control: 10 to 100% (in 10% steps) |
| 发光延迟 | 15μs max. |
| 输出端口 | SMP-02V-BC (1: Output(+), 2: Output(-)) x 2 pieces |
| 外部控制端口 | External control: 25-pin D-sub plug with M2.6 mm screws x 1 piece |
| 触发 | Trigger mode: Int/Ext (Both channels are changed simultaneously.) Int (Internal trigger): 1.42 ms cycle, Lighting time of 10 to 100μs (Used for operation confirmation) Ext (External trigger): Photo-coupler input, Current of 5 mA max., Pulse width of 20μs min., Wave rise/fall of 10μs max. (Ambiguous wave pattern is not allowed.), Operable trigger input cycle of 14.2 ms min. (When the pulse width setting switch is set to 99.) |
| 触发输出 | Trigger input ON: High pulse output with 5V CMOS signal 8: Trig1 OUT, 9: Trig2 OUT, 10: GND |
| 适合规格 | CE, UKCA, RoHS |
| 使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| 保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| 冷却方式 | Natural air-cooling |
| 重量 | 1200 g |
| 材质 | Steel plate t1.0 |
| 附属品 | 2m long 3-prong AC power cord with ground terminal x 1, External connector x 1 Instruction Guide x 1 |
