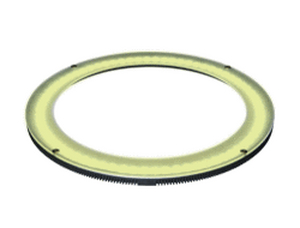

CCS希希爱视 HPR2-400FC-FT 环形光源
LED发光颜色 | 全色(红,绿,蓝色) |
---|---|
峰值发光波长 | Red: 622 nm typ., Green: 525 nm typ., Blue: 470 nm typ. |

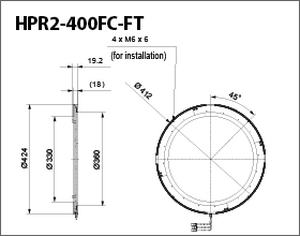

外观尺寸 | Outer diameter 424 mm, Inner diameter 330 mm, Height 19.2 mm |
输入电压 | 24VDC |
消耗功率 | 30 W max. (Red: 7.3 W, Green: 11 W, Blue: 11 W) |
极性, 信号 | 1: (+), 2: NC, 3: (-) |
线缆长度 | 300 mm |
外壳材质 | Aluminum alloy, resin |
输入端口 | SMR-03V-B x 3 |
适合规格 | CE, UKCA, RoHS, IEC 62471(Exempt) |
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
冷却方式 | Natural air-cooling |
重量 | 1,050 g |
附属品 | 使用说明书 |
注意事项 | Cannot be used with the strobe control unit (overdrive mode). |
