CCS希希爱视 LN-EAA-n△ CCS × AItec
| LED发光颜色 | RD (red), SW (white), or BL (blue). |
|---|---|
| 适合规格 | CE, UKCA, RoHS, IEC 62471(Exempt) |
| 使用温湿度 | Temperature: 0 to 40℃, Humidity: 30% to 85%RH (with no condensation) |
| 保存温湿度 | Temperature: 0 to 50℃, Humidity: 30% to 85%RH (with no condensation) |
| 冷却方式 | Natural air-cooling |
| 备注 | Opening width: 50 mm |
Lineup
| Model name*1 | LED color | Emitting surface length (Dimension A) | Camera window length (Dimension B) | (Dimension C) | Full length (Dimension L) | Power consumption （max.） | Light cable connection | Control Units | Weight |
|---|---|---|---|---|---|---|---|---|---|
| LN-EAA-100△ | Blue White Red | 100mm | 65mm | 21 mm | 129mm | 24V / 21 W | FCB-AI-☐-C1*3 | PSB3-30024 PSB4-30024-PEI PSB4-60024-2-PEI | 418 g |
| LN-EAA-200△ | 200mm | 165mm | 229mm | 24V / 40 W | FCB-AI-☐-C2*3 | 756g | |||
| LN-EAA-300△ | 300mm | 265mm | 329mm | 24V / 60 W | 1,093g | ||||
| LN-EAA-400△ | 400mm | 365mm | 429mm | 24V / 79 W | 1,430g | ||||
| LN-EAA-500△ | 500mm | 465mm | 529mm | 24V / 98 W | 1,767g | ||||
| LN-EAA-600△ | 600 mm | 565 mm | 629 mm | 24 V / 118 W | 2,105 g | ||||
| LN-EAA-700△ | 700mm | 665mm | 729mm | 24V / 137 W | FCB-AI-☐-C3*3 | 2,442g | |||
| LN-EAA-800△ | 800mm | 765mm | 829mm | 24V / 157 W | 2,779g | ||||
| LN-EAA-900△ | 900mm | 865mm | 43 mm | 951mm | 24V / 176 W | FCB-AI-☐-C4*3 | 3,211g | ||
| LN-EAA-1000△ | 1,000mm | 965mm | 1,051mm | 24V / 195 W | 3,549g | ||||
| LN-EAA-1100△ | 1,100mm | 525 mmx 2pcs.*2 + 15 mm | 1,151mm | 24V / 215 W | 3,886g | ||||
| LN-EAA-1200△ | 1,200mm | 575 mmx 2pcs.*2 + 15 mm | 1,251mm | 24V / 234 W | 4,223g | ||||
| LN-EAA-1300△ | 1,300mm | 625 mmx 2pcs.*2 + 15 mm | 1,351mm | 24V / 254 W | 4,560g | ||||
| LN-EAA-1400△ | 1,400mm | 675 mmx 2pcs.*2 + 15 mm | 1,451mm | 24V / 273 W | 4,898g | ||||
| LN-EAA-1500△ | 1,500mm | 725 mmx 2pcs.*2 + 15 mm | 1,551mm | 24V / 292 W | 5,235g | ||||
| LN-EAA-1600△ | 1,600 mm | 775 mmx 2pcs.*2 + 15 mm | 1,651 mm | 24 V / 312 W | FCB-AI-☐-C5*3 | PSB4-60024-2-PEI | 5,572 g |
- *1 ” △” mark is the model name indicates the LED color with one of the following letters : SW(White), RD(Red), or BL (Blue).
- *2 The light unit has two camera windows. Please refer to the dimension diagrams shown below.
- *3 ☐ : Cable length. (☐ = 2, 3, 5, 10)
- * The Light Units of both series conform to the safety standard EN 62471.
- * Warranty for this product differs from CCS standard lighting. Contact your local sales office for details.

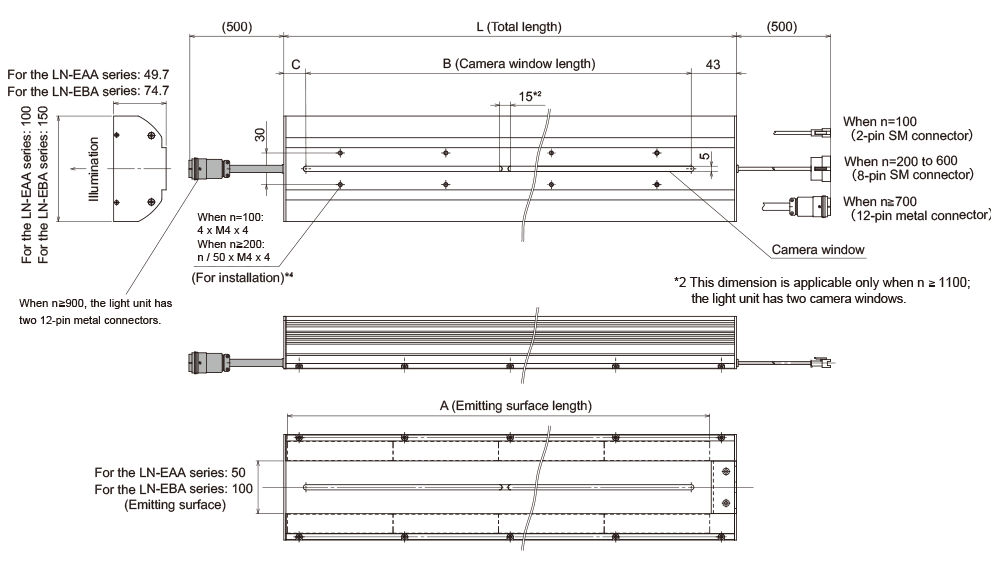

LN-EAA-n / LN-EBA-n Series (n = 100 to 1,600)
(Unit: mm)
- *2 This dimension is applicable only when n ≧ 1100; the light unit has two camera windows.
- *4 Refer to download materals for dimensions details
- ★ Please see the line up for size details
