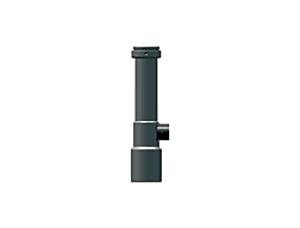

CCS希希爱视 SE-110VT20-M 远心镜头

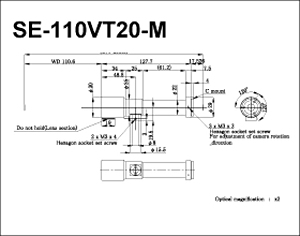

外观尺寸 | Outer diameter 30 mm |
---|
光学倍率 | 2.0x ±5% |
---|
WD | 110.6±3.3 mm |
---|
景深 | 0.27 mm (*1 *2) |
---|
光学分辨率 | 4.5 μm (*2 *3) |
---|
NA | 0.075 (*2) |
---|
有效F值(Fe) | 13.0 (*2) |
---|
TV失真 | -0.018% (*2) |
---|
相机支架 | C mount |
---|
最大适用图像传感器尺寸 | 2/3"L (*4) |
---|
视野(图像传感器尺寸) |
|
---|
使用波长 | 400 to 700 nm |
---|
适合规格 | RoHS |
---|
使用温湿度 | Temperature: 0 to 40°C, Humidity: 85%RH max. (with no condensation) |
---|
保存温湿度 | Temperature: -20 to 60°C (with no condensation) |
---|
重量 | 115 g max. |
---|
附属品 | 使用说明书 |
---|
备注 | *1 Calculations are based on a permissible circle of confusion diameter of 40 μm.
*2 These are calculated values.
*3 Theoretical resolution calculations are based on a wavelength of 550 nm.
*4 Reference values of the maximum image size are as follows:
2/3": 6.60 mm height, 8.80 mm width, 11.00 mm diagonal
2/3"L: 5.98 mm height, 11.26 mm width, 12.75 mm diagonal |
---|
