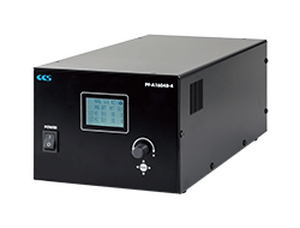

CCS希希爱视 PF-A16048-4 超亮频闪光源专用电源

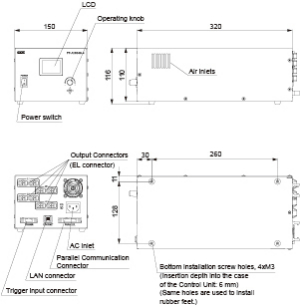

外观尺寸 | W 150 mm X D 320 mm X H 116 mm |
---|---|
适合光源(输出定额) | High Power Strobe Light Units from CCS |
通道数 | 4 channels |
发光方式 | Strobe lighting |
驱动方式 | Constant lighting |
调光方式 | Variable-voltage control, Strobe time control |
输入电压 | 100 to 240 VAC (+10% -15%) |
频率 | 50/60 Hz |
消耗功率 | 140 VA typ. |
输出电压 | High voltage range: 33 to 48 VDC Low voltage range: 12 to 48 VDC |
输出电流 | Total for 4 channels: 172.8 A (21.6A/connector) |
涌入电流(typ) | 17 A (at 100 VAC), 40.8 A (at 240 VAC) from a cold start |
对地泄漏电流 | 3.5 mA max. (264 VAC, 60 Hz, with no load) |
绝缘耐压・绝缘电阻(输入-FG) | 1500 VAC for one minute, Cutoff current: 10 mA 500 VDC, 20 MΩ min. |
适合规格 | CE, UKCA, RoHS |
使用温湿度 | Temperature: 0 to 40℃, Humidity: 20 to 85%RH (No condensation) |
保存温湿度 | Temperature: -20 to 60℃, Humidity: 20 to 85%RH (No condensation) |
冷却方式 | 强制冷却 |
重量 | 3,300 g max. |
材质 | Surface material (Steel sheet, Cover thickness: 1.6 mm, Chassis thickness: 1.0 mm, Black (half matte)) |
附属品 | Instruction Guide, 2-m-long 3-prong AC power cord with ground terminal |
Program | 【Sample Program】 Sample programs are available. See the 选件 tab. |
