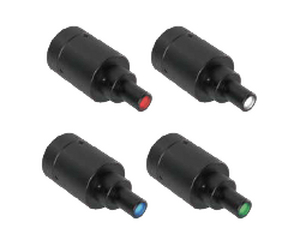

CCS希希爱视 HLV3-22GR-1C 点光源
LED发光颜色 | Red, White, Blue, Green |
---|---|
峰值发光波长 | Red: 630nm typ, White: 5600K typ, Blue: 465nm typ, Green: 520nm typ |

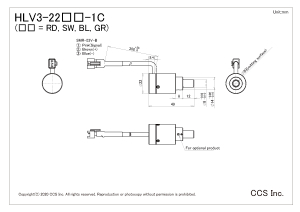

外观尺寸 | Outer diameter 22 mm, Tip diameter 8 mm, Total length 49 mm |
消耗功率 | Red: 1.1W, White: 1.3W, Blue: 1.4W, Green: 1.4W max. |
极性, 信号 | 1: Signal, 2: (+), 3: (-) |
线缆长度 | 300 mm |
外壳材质 | Aluminum alloy |
输入端口 | SMR-03V-B |
输入电流 | 385 mA |
适合规格 | CE, UKCA, RoHS, IEC 62471(Red: Exempt, White: Mod risk, Blue: Mod risk, Green: Low risk) |
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
冷却方式 | Natural air-cooling |
重量 | 34 g max. |
附属品 | 使用说明书 |
